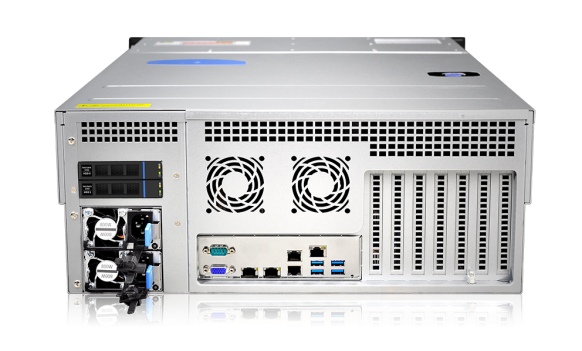

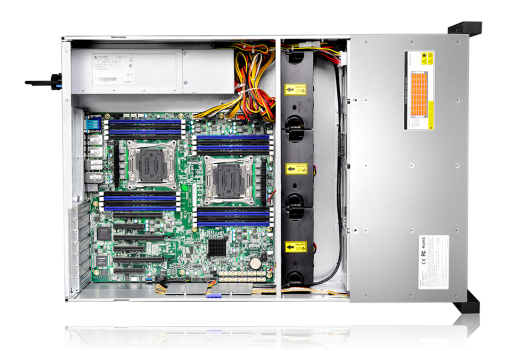

Flagship Dual-Socket Server, Strong Scalability with Massive Storage
Standard Chassis
Safe and stable
Safe and stable
| Chassis Form | Rackmount |
| Chassis Height | 4U |
| Compatible Motherboard | EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX |
| Power Type | Single power or 1+1 redundant power supply |
| Backplane | 12Gb/s passive backplane |

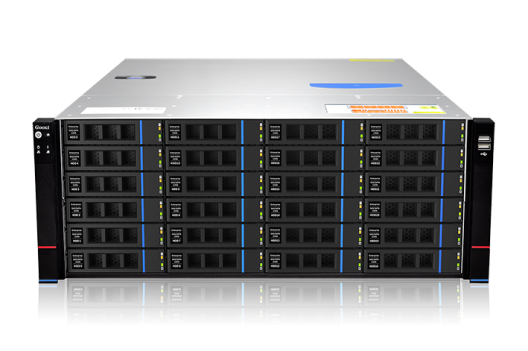

| Hard Drive Bay | Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drive; 24x 3.5" (or 2.5") hot-swap hard drive bays; 2x 2.5” built-in non-hot-swap hard drive bays; optional 2x 2.5" rear hot-swap hard drives |
| HDD Shockproof | The hard drive rack adopts EMI spring design, unique shockproof fan design, reduces the resonance between the fan and the hard disk, and does not affect the hard drive I/O speed |
| System Fan | Supports intelligent-temperature control, 3x 12038 hot-swap fans |
| Expansion Slot | 7x full-height PCIe expansion card slots |
| Security | Lock screw upper cover |
| Front Panel Control | 2 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 2 network indicators |
| Slide Rail | Optional |
| Air Duct | Optional |
| Front Mask | Optional |
| Product Material | Imported SGCC (galvanized steel sheet), ABS panel and perforated mesh |
| Chassis Size | 670mm*444mm*177mm (D* W* H) |
| Chassis Gross Weight | 18kg（Net weight）/ 24kg（Gross weight） |
| Package Size | 902mm*591mm*318mm (D* W* H） |
Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
