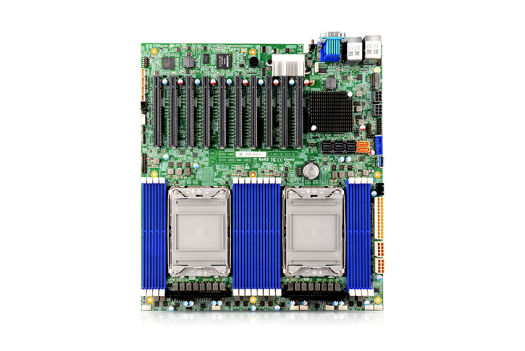

E-ATX standard motherboard / Support 2* Intel Xeon ICE Lake processors, LGA4189 socket / Support DDR4 ECC RDIMM/LRDIMM server memory

Product Overview Product Specifications Relevant Information
  • High performance:supports single/dual socket Intel® Xeon® Scalable ICE Lake series processors
  • Massive capacity:memory supports 16* DDR4 2400/2666/2933/3200 MHz
  • Strong expansion:6* PCIex8 and 4* PCIex 16
  • Availability: single board hardware adopts carrier grade devices and processing process flow

Intelligent distance security management

Supports Raid0 / 1 / 5 / 10 / 60. The RAID level is determined based on different Raid controllers. RAID technology can ensure the online switching of hard disk in case of problems, so as to ensure the integrity of data.Via BMC monitoring system parameters, alarm prompt information and log storage are sent in the web management interface. Technicians can quickly locate and take measures through logs and alarm prompts to ensure the stable operation of the machine and reduce the probability of downtime.

Superelevation calculation force

Support Intel® Xeon® Scalable processor (ICE Lake-SP ≤ 270W, up to 40-core processors provide excellent system performance, the highest dominant frequency is 3.2GHz, and the largest single core that can be achieved by Intel® turbine acceleration technology: the maximum overclocking is 3.4GHz.It supports Intel virtualization technology and integrates hardware-level virtualization functions, allowing the operating system to make better use of hardware to handle virtualization.

Massive storage

Support 16* 2400 / 2666 / 2933 / 3200 MHz memory, DDR4 LRDIMM / RDIMM ECC memory, and a single capacity of 16GB, 32GB, 64GB (RDIMM) and 128GB (LRDIMM).Three Minisas SFF-8643 connectors and two SATA6.0Gbp on board.

Motherboard Model G3DE-B
Board Type E-ATX standard motherboard, PCB Size:12"(L)x 13"(W)(304.8 mm x 330.2 mm)
Processor 2* Intel Xeon ICE Lake processors, TDP 270W
Chipset /
Memory DDR4 ECC RDIMM/LRDIMM server memory, memory frequency supports 2133/2400/2666/2933/3200MHz.
Each CPU supports 8 Channels, 2* DIMMs per Channel, total 16* DDR4 sockets.
PCle Slot 6* PCIex8 (in PCIe x16 slot) and 4* PCIex16 (2, 6, 7, 10slot), or 4 PCIe x8 (in PCIe x16 slot) and 5 PCIe x16 (2, 4, 6, 7, 10 slot), of which 2, 6, and 7 are PCIe4.0, and the rest are PCIe3.0
Rear I/O Interface 1 VGA port, 1 COM pot, 2 USB3.0, 1 management network port, 2 RJ45 network ports
On-Board Interface Onboard 3* MiniSAS SFF-8643 ports, 2* 7pin SATA 3.0 slots (SATA DOM can be supported)
Power Supply AST2500 chip
Network 2* RJ45 LAN Ports (1Gigabit) + 1 RJ45 IPMI LAN Port (1Gigabit)
Display /
Management Onboard iBMC management module, support IPMI, SOL, KVM Over IP, virtual media and other management features
Security Supports TPM module
Operating System Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Working Temperature 0º C - 35º C (indoor); Extended operating temperature: 5º C - 40º C (specific configuration); Transportation and storage temperature: - 40º C - 70º C

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
