Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > Intelligent Computing > ASR4105G-D02R

ASR4105G-D02R

Storage-Compute Convergence

Supports 2 AMD EPYC 7003 series, compatible with AMD EPYC 7002 & 7001 series / 16 DDR4 slots, support 2400/2666/2933MHz DDR4 memory

Applicable solution

cloud computing

Add product comparison

Product Overview Product specifications Relevant information

2 high-performance AMD EPYC 7003/7002/7001 processors
10 PCIe high-speed expansion slots to provide rich expansion performance
5 full-height, double-width high-performance GPUs for the needs of high computing power
16 RECC DDR4 memory slots, the maximum frequency supports 2933MHz

Modular Design

Standard E-ATX form factor, matching any chassis. The fan, power supply and hard disk are all designed with modules, which comprehensively improves the reliability and heat dissipation performance of the system and facilitates subsequent maintenance.

High Performance

Support 2 AMD EPYC 7003 (Milan) series, compatible with 7002 (Rome) series and 7001 (Naples) series, 12/Gb SAS backplane, support 5 full-height double-width high-performance GPUs; Support 16 RECC DDR4 memory slots, the maximum frequency supports 2933MHz. The motherboard natively supports NVMe cache interface to meet the needs of artificial intelligence, virtualization, cloud computing, big data processing, distributed storage, enterprise market and telecom applications.

Strong Scalability

Support 10 PCIe high-speed expansion slots to provide rich expansion performance.

Intelligent PSU and Temperature Control

Adopt platinum-level 1+1 redundant power supply, support hot-swap replacement, and ensure the stability of the system, with intelligent temperature-controlled fan module, support hot-swappable replacement, and excellent shock-resistant design.

System model	ASR4105G-D02R
Processor	Support 2 AMD EPYC 7003; Compatible with AMD EPYC 7002 and 7001 series
Chipset	/
Memory	16 DDR4 memory slots, support 2400/2666/2933 MHz DDR4 memory
Storage controller	1 M.2 (PCIe x 4) interface 2 MiniSAS HD interfaces
Storage	Rear 1x 2x2.5" hard disk module
Network	2 onboard 1GbE

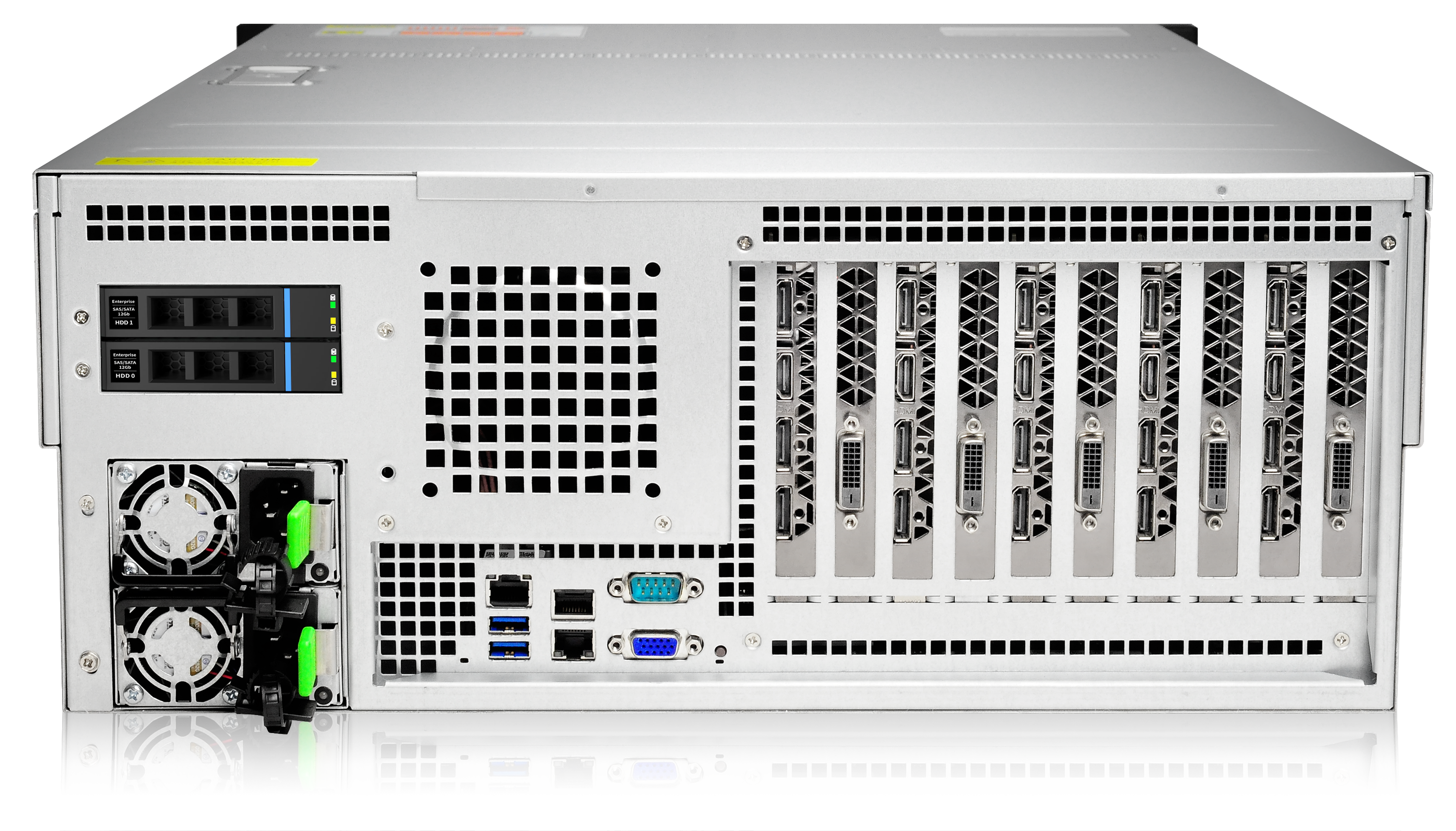

I/O ports	Front: 2 USB2.0 Rear: 1 VGA, 1 COM port, 2 USB3.0, 1 management network port, 2 RJ45 network ports
PCIe Extension	Support 6 PCIe x8 and 4 PCIe x16
Power Supply	Support 800W, 1200W, 1600W, 2200W hot-swap redundant power (adapt according to the actual power)
Fan	Standard 3x 12038 hot-swap fans, optional 2*8038 fans at the rear
Administration	1 RJ45 management network port IPMI2.0
System fan	5 full-length full-height dual-width GPU cards
Security	Support TPM module
Operating system	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	440 x 433 x 176.5mm (D x W x H)
Working temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
