Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > Hyper-Convergence > SY204-D12R-G2

SY204-D12R-G2

Storage-Compute Convergence

Single node supports 2x1st or 2nd generation Intel® Xeon® Scalable processors, only CPU1 supports -F series CPU / Single node supports DDR4-2133/2400/2666/2933 ECC-RDIMM/LRDIMM / 12 hot-swap SATA (HDD/SSD)

Applicable solution

cloud computing

Add product comparison

Product Overview Product specifications

New Gen 2U4 Node Server
1 or 2 Intel® Xeon® Scalable processor
Suitable for cloud computing, virtualization, ultrahigh computing, distributed storage, hyper-convergence, CDN acceleration, rendering cluster, IDC, E-GOV, etc.

Perform Well

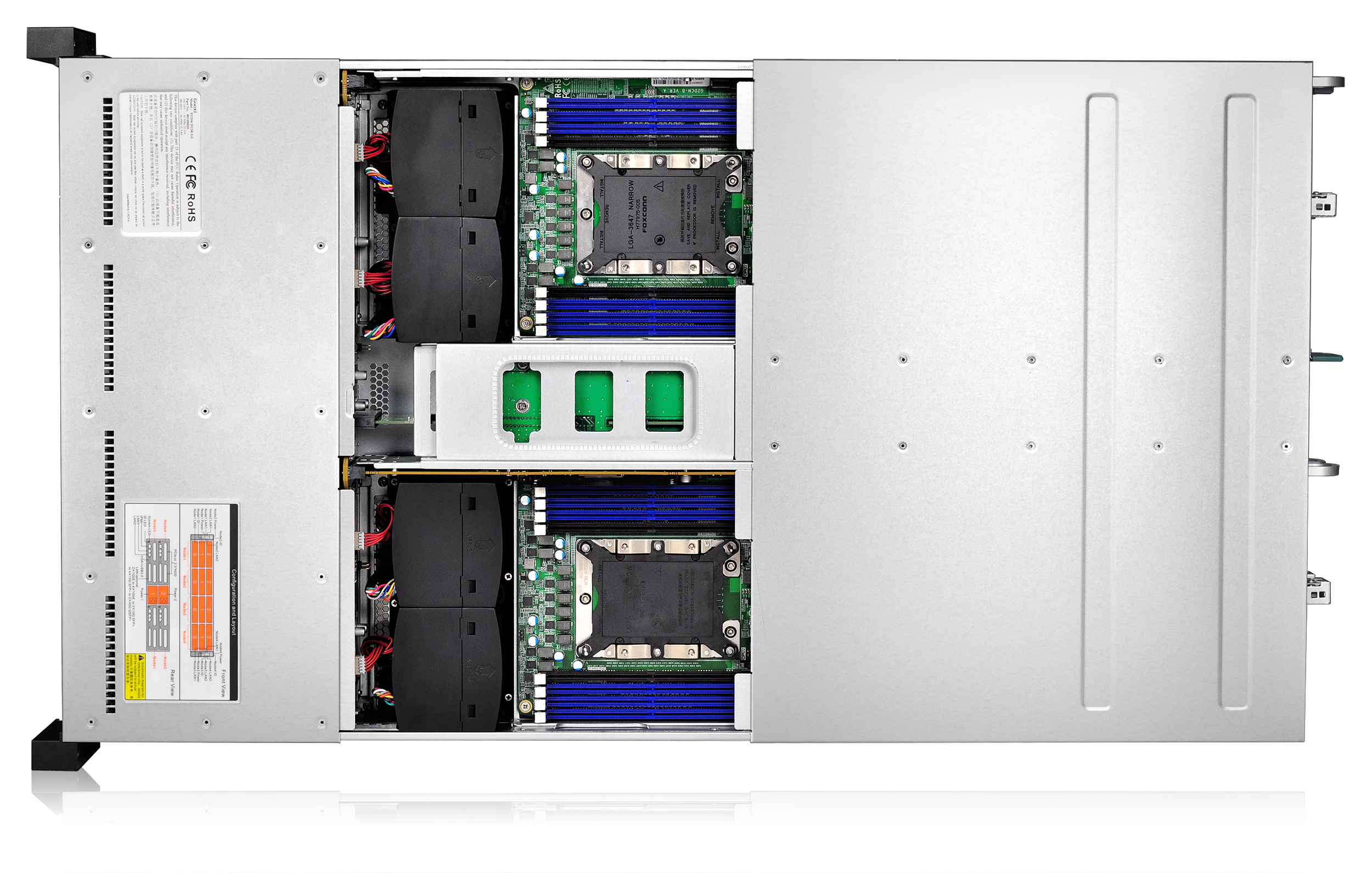

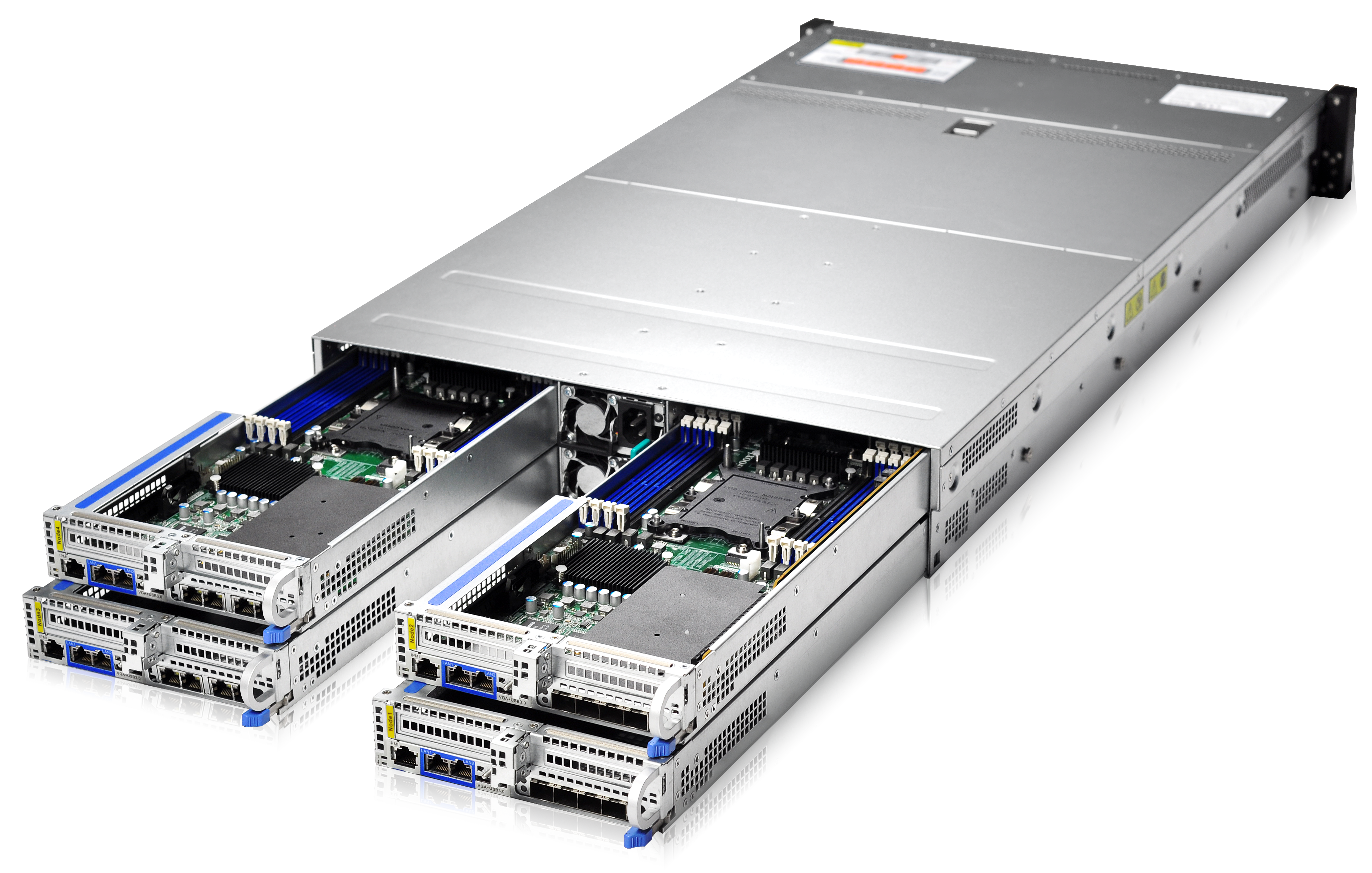

2U DP rackmount server, 4 (SY204 Series) computing nodes in 2U height. Single node supports 2 Intel® Xeon® Scalable processors. Totally improved kernel, frequency, cache & interconnection channel. Suitable for enterprises, data centers, HPC, cloud computing, etc.

Smart Management

Distance IPMI2.0, easy-to-operate upgrading software, remote BMC&BIOS upgrading. Powerful system monitoring, perfect log information, easy query management.

Rich I/O

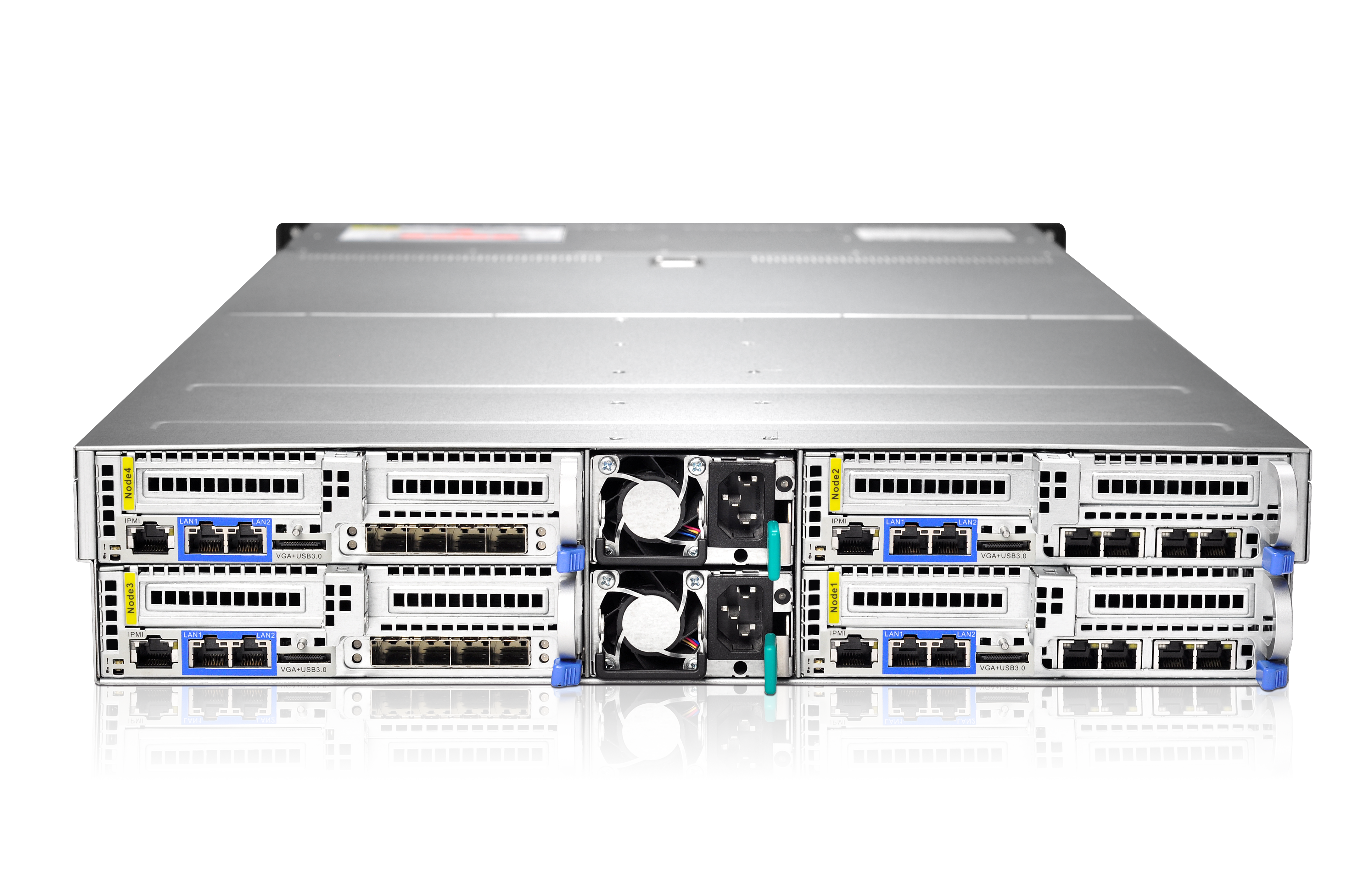

Per node provides 1 high-density expansion port (2 USB3.0, 1 VGA), separate IPMI port and 2* 1G data LAN ports; Mezzanine interface onboard, optional expansion of 4-port 1GB / 2-port 10GB / 4-port 10GB LAN ports, supporting 100G Omni-Path interconnection.

Excellent Storage

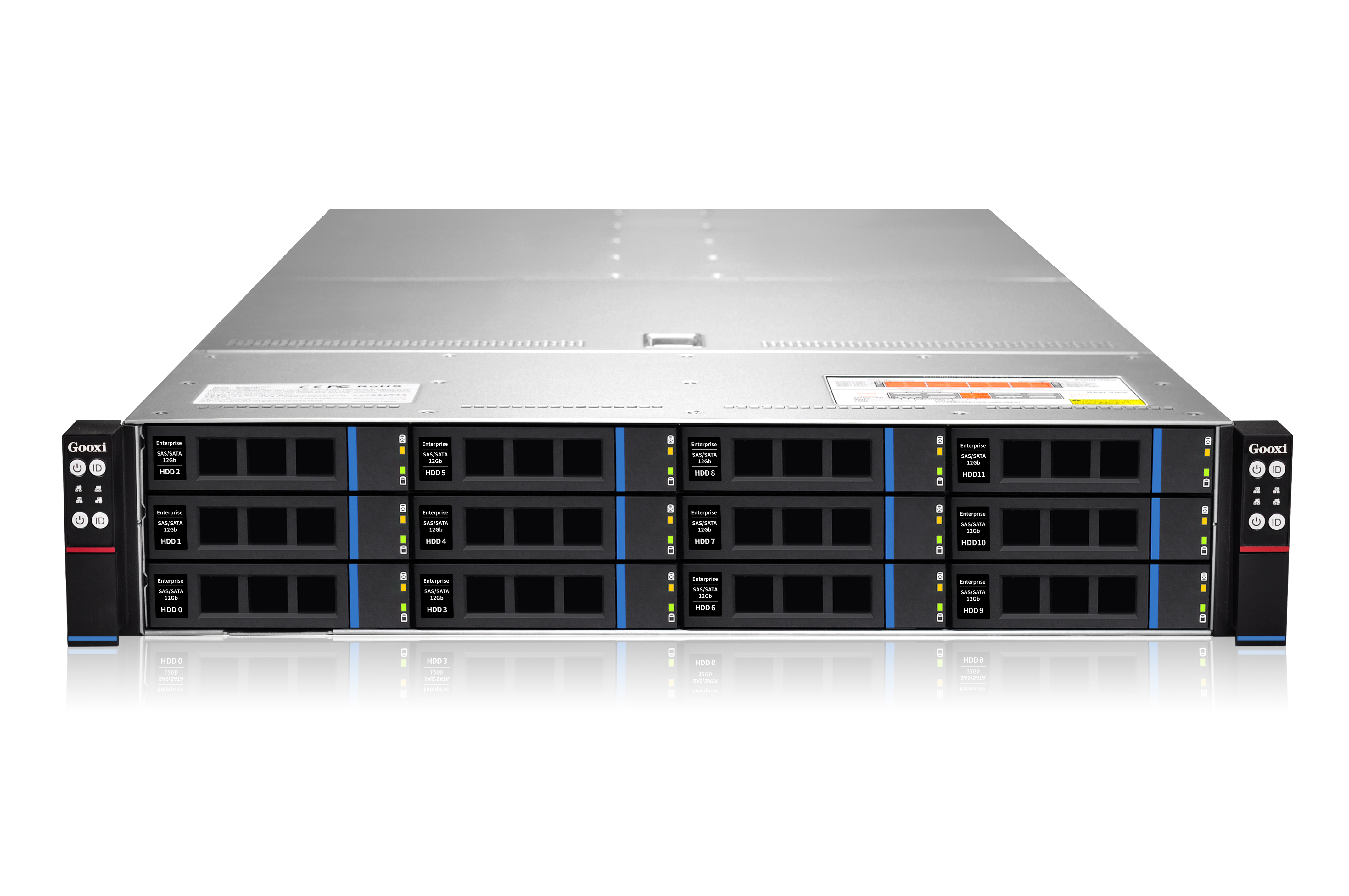

SY204 series support 12-Bay hot-swap hard disk. 64 DIMM in whole machine, memory 4TB. Per node supports 2* M.2 SSD & 2* half height PCIe cards.

System model	SY204-D12R-G2
System node	The system supports 4 easy-swap high-performance dual-socket server nodes
Processor	Single node supports 2x1st or 2nd generation Intel® Xeon® Scalable processors, only CPU1 supports -F series CPU
Chipset	Intel® C621 series server-specific chipset
Memory	Single node supports DDR4-2133/2400/2666/2933 ECC-RDIMM/LRDIMM; Single memory capacity support: RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB
Storage controller	Internal PCH supports RAID 0\1\10&5 (for Windows only)
Storage	Single node supports 3x 3.5" /2.5" SATA hard drives; the whole system supports 12x 3.5" /2.5" SATA hard drives Single-node internal storage: 2x 7pin SATA interfaces
Network	Onboard 2 Gigabit RJ45 network ports
I/O ports	1 high-density custom expansion port (can expand 1 VGA and 2 USB3.0), 1 RJ45 management network port, 2 Gigabit RJ45 network ports
PCIe Extension	Single node: Support 1 x PCIe3.0 x 16 half-height expansion card, 1 x PCIe3.0 x 8 half-height expansion card and 1 PCIe 3.0 Mezz expansion card
Power Supply	800W, 1200W, 1300W, 1600W hot-swap 1+1 redundant power
Fan	The system supports 4x 8038 hot-swap fans, optional 8056 hot-swap fan
Administration	IPMI2.0
Security	TPM
Operating system	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	809 x 433 x 87.6mm (D x W x H)
Working temperature	Operating temperature: 10ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
