Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > Chassis > RMC4104G-670-HS

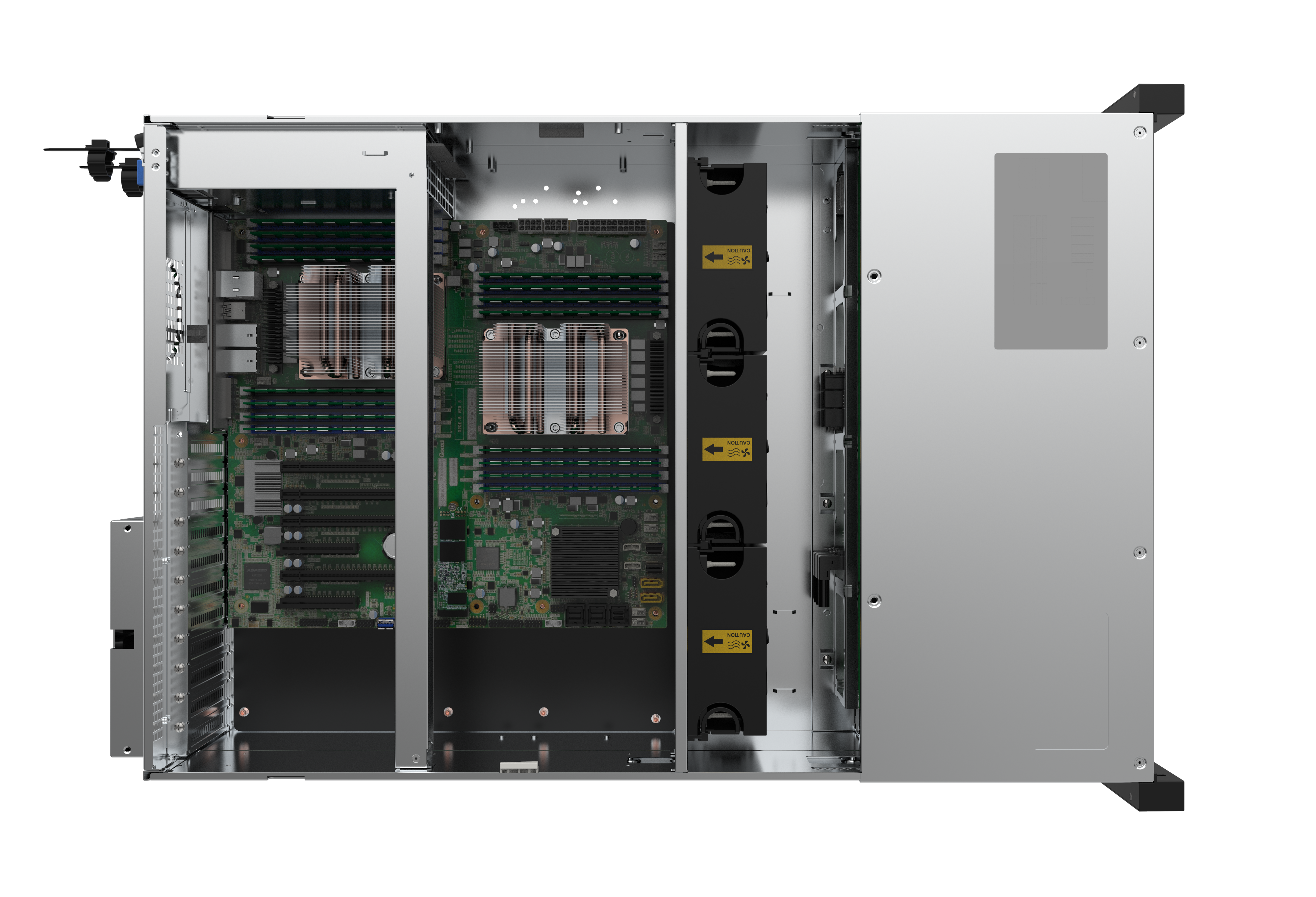

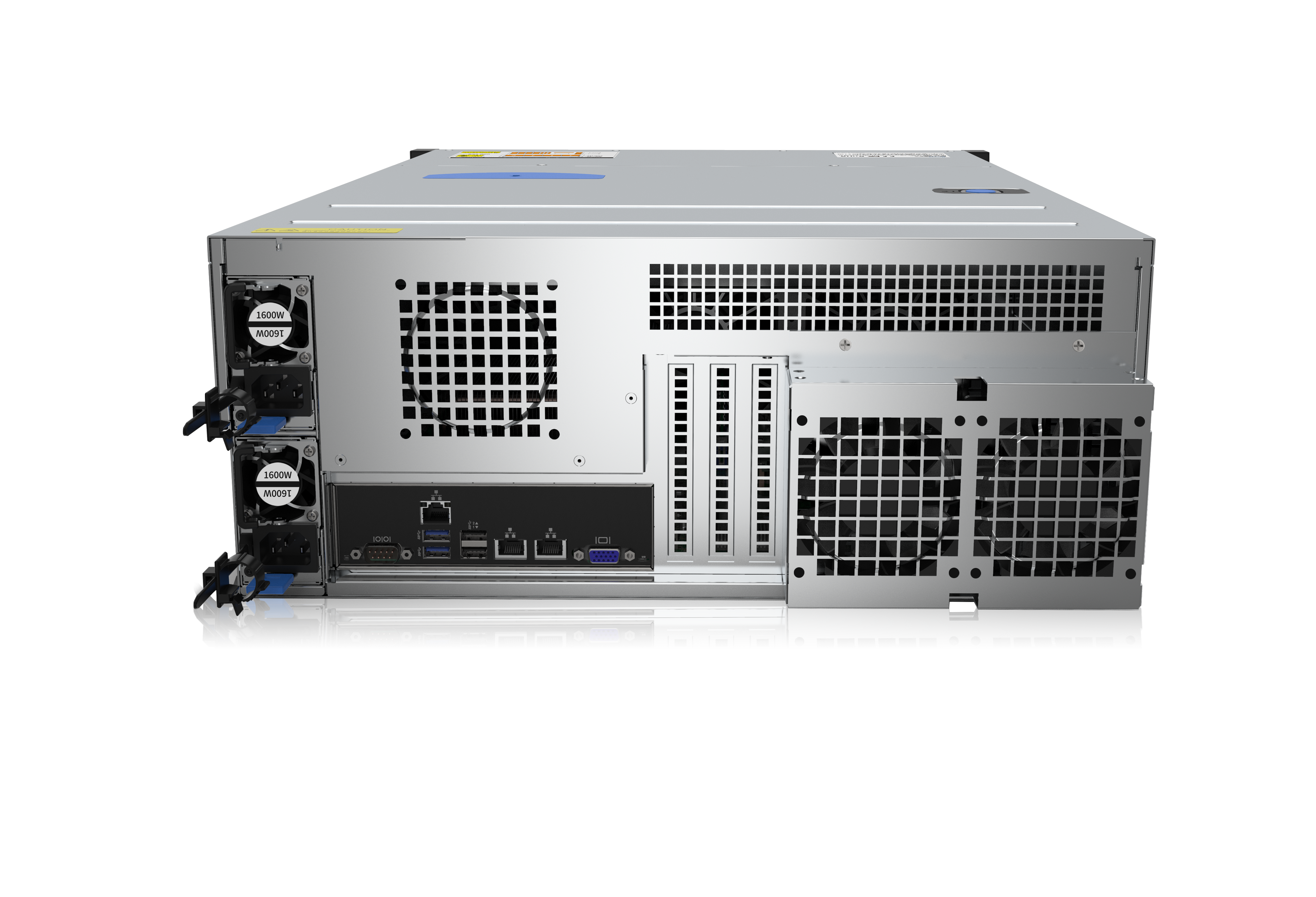

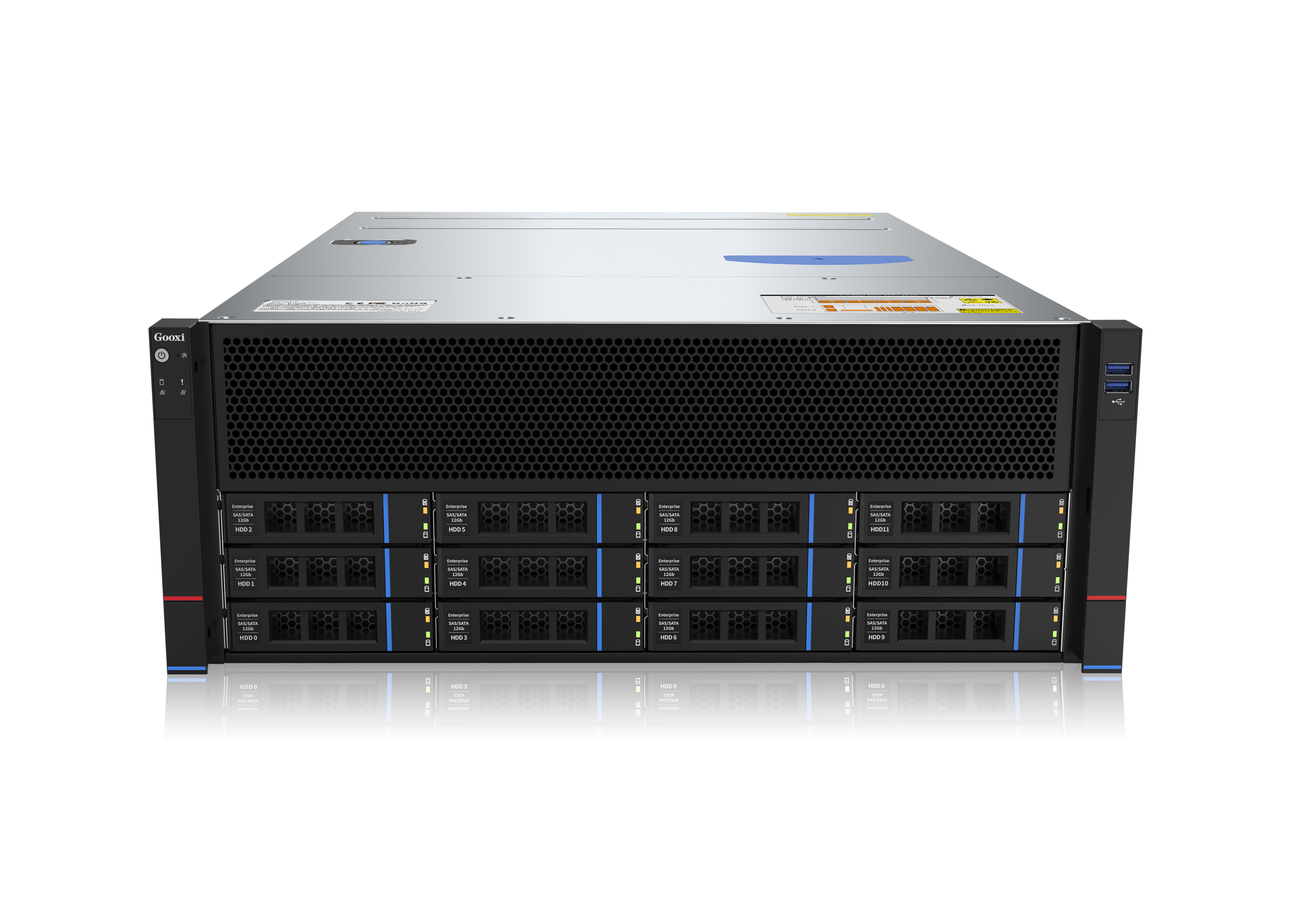

RMC4104G-670-HS

Safe and stable

Storage-Compute Convergence

MB spec: 15.2”x 13.2”& below / 12Gb/s passive BP. Fits SAS3.0/SATA3.0 Drive / 11 PCIe full-H expansion slots / Temperature-control fans，1+1 redundant PSU

Add product comparison

Product Overview Product specifications Relevant information

4U height supports 11 PCIe full-height expansion card slots, support 4 full-height, double-width, full-length GPU cards
With real-time high-speed parallel computing and floating-point computing capabilities
Suitable for use in HPC, big data analysis, 3D graphics applications, video decoding, deep learning
Applications such as scientific computing

Flexible Platform Conversion Capabilities

Compatible with motherboard X10DRG-Q/X11DPG-QT/X12DPG-QT6/EEB(12*13), the platform is flexible and freely to choose meet different applications of customers.Front 12* 3.5"/2.5" hot-swap hard drives, built-in 2* 2.5" non-hot-swap hard drives (SAS3.0/SATA3.0/U.2).

Superior GPU Density Support

The 4U system can support up to 11 PCIe full-height expansion card slots, 4 full-height, double-width and full-length GPU cards, compatible with NVIDIA GTX and RTX series, and provide the unrivaled architecture and a variety of power supply methods without changing accessories.

System model	RMC4104G-670-HS
Chassis form	Rackmount
Chassis height	4U
Adapting motherboard	EEB(15.213.2)/CEB(1210.5)/X10DRG-Q/X11DPG-QT/X12DPG-QT6/EEB(12*13)
Power supply type	Supports 1+1 redundant power supplies
Backplane	12Gb/s passive backplane
Disk bit	Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drives; front 12x 3.5/2.5” hot-swap hard driver bays, built-in 2x 2.5” non-hot-swap hard driver bays
HDD shockproof	The hard drive rack adopts EMI spring design, unique shockproof fan design, reduces the resonance between the fan and the hard disk, and does not affect the hard drive I/O speed
System fan	Supports intelligent-temperature control, built-in 3* 12038 hot-swap fans, optional rear 2x 8038 temperature-control fans
Expansion card slot	Supports 11x PCIe full-height expansion slots
Security	TPM/TCM (Requires motherboard support)
Front panel control	2 USB2.0, 1 power switch, 1 reset button, 1 hard disk indicator, 1 system failure indicator, 2 network indicators
Slide rail	Optional
Air cowl	Optional
Front cover	Optional
Product material	Imported SGCC (galvanized steel sheet), ABS panel and perforated mesh
Chassis size	670mm433mm177mm (D* W* H)
Gross weight of chassis	30kg（Net weight）/ 36kg（Gross weight）
Package size	985mm585mm325mm (D* W* H）

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
