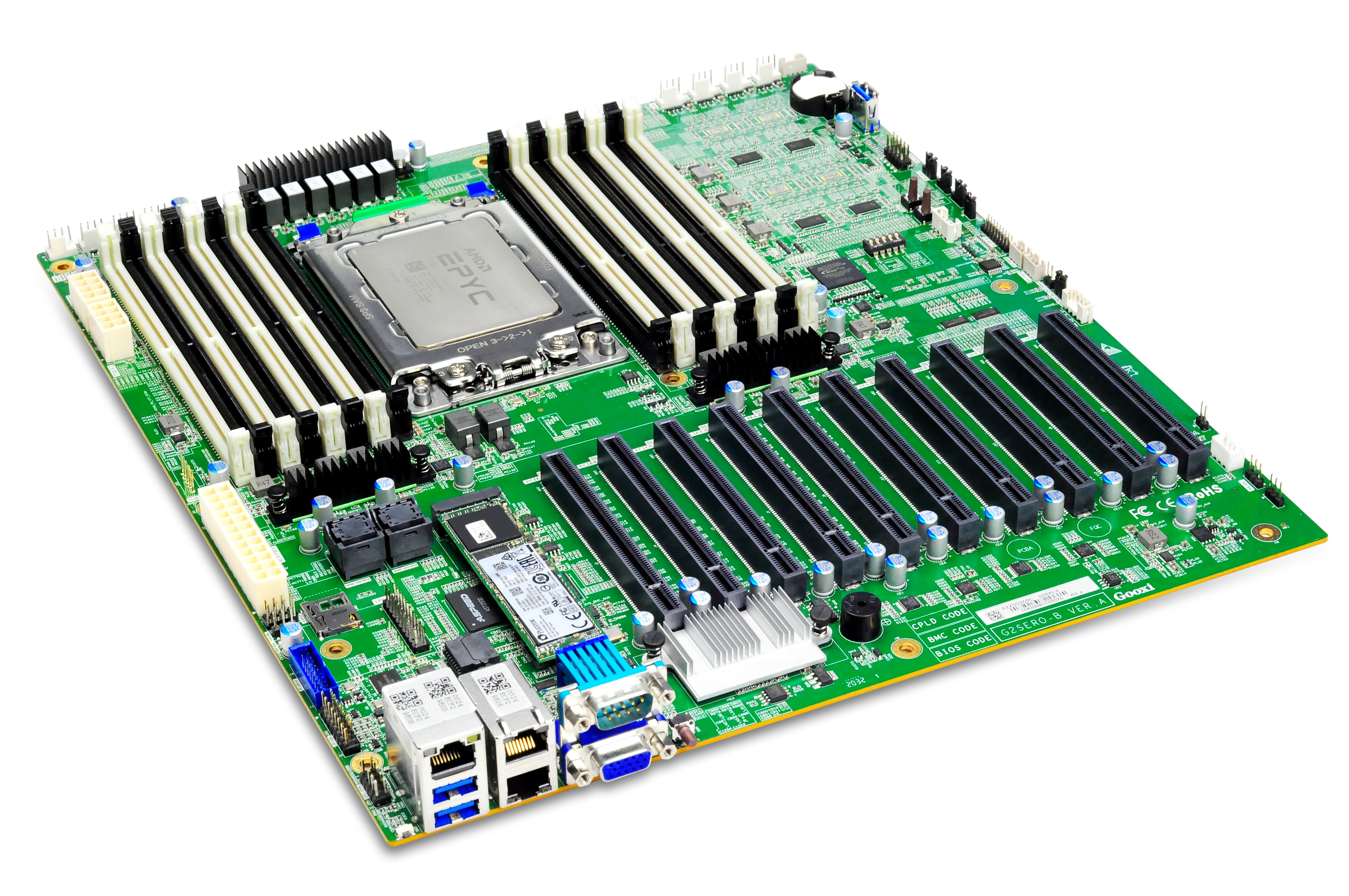

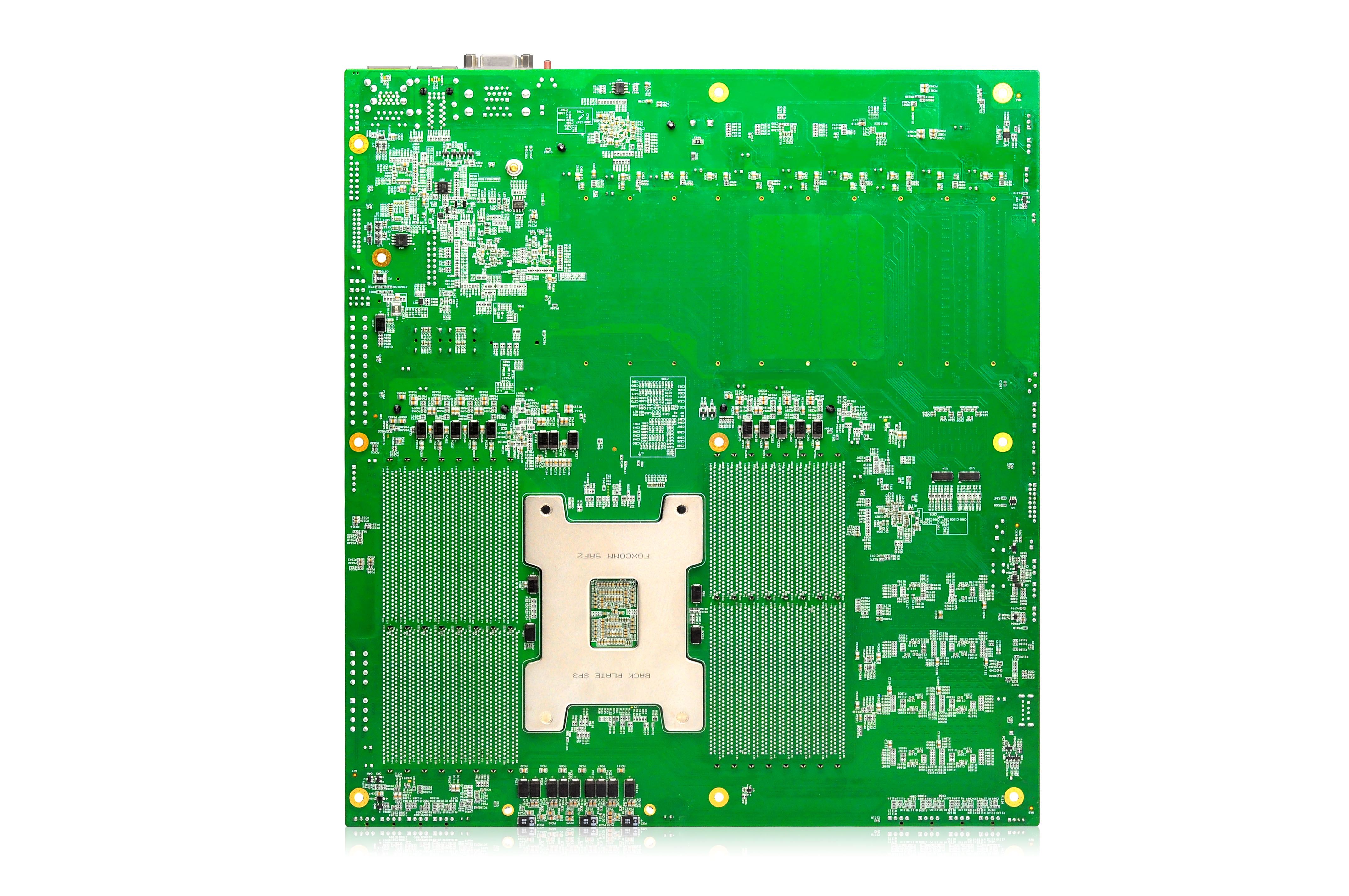

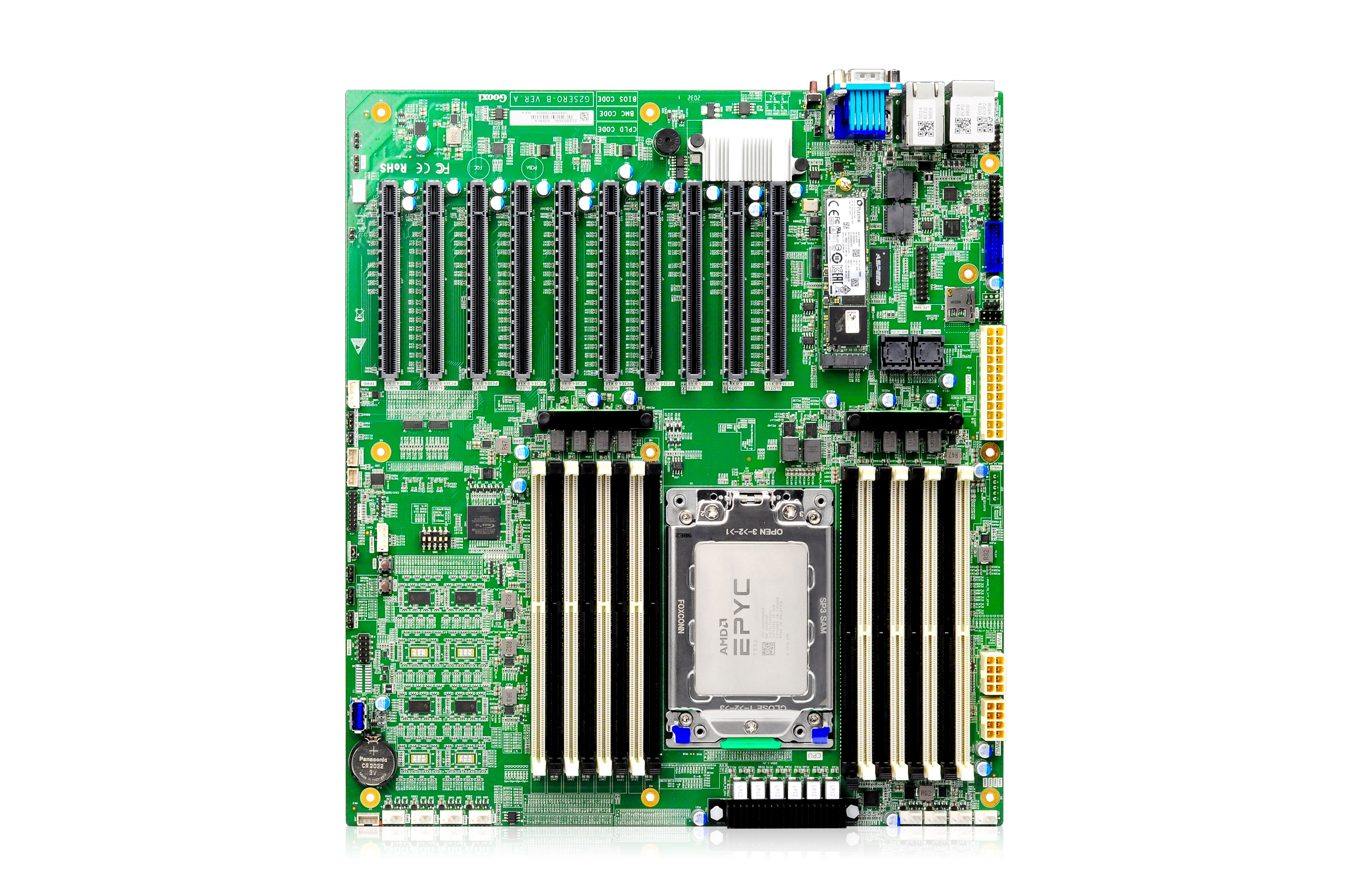

G2SERO-B(PCIe4.0)

Intelligent security

Intelligent security

E-ATX standard motherboard / Supports 1* AMD EPYC 7003 series (Milan) processor / support 16* DDR4 slots


Product Overview Product specifications Relevant information




Feature Highlights

Supports 1 AMD EPYC 7003/7002/7001 series processor

Supports 16* DDR4 memory slot, 8* channel, memory frequency up to 2933MHz

Supports 10* PCIe4.0 high-speed expansion slot

Supports 8PCS P4/T4 graphics cards or 4PCS high-performance GPU




System model G2SERO-B(PCIe4.0)
Processor Supports 1* AMD EPYC 7003 series (Milan) processor Compatible with AMD EPYC 7002 series (Rome), AMD EPYC 7001 series (Naples)
Chipset /
Memory Supports 16* DDR4 memory slot,memory frequency supports 2133/2400/2666/2933MHz
PCle slot 10x PCIe slot
PCIe extension form: Supports 6* PCIe 4.0 x8 and 4* PCIe 4.0x16
Rear I/O interface 1 VGA, 1 COM port, 2 USB 3.0, 1 management network port, and 2 RJ45 network ports
Onboard interface 1 M.2 (PCIe x4) interface, 2 MiniSAS HD interfaces
Network 1 management network port, and 2 RJ45 network ports
Display 1 VGA
Power Supply Standard 24pin ATX power input+2 8-pin power connectors
Administration 1 dedicated management network port
Security Supports TPM module
Operating system Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Working temperature Temperature 5 ℃~35 ℃/humidity 20%~80% RH non condensing

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)

Related Downloads

User Manual

Product specification
