G2DE-B

Intelligent security

E-ATX standard motherboard / Up to 4TB 3DS ECC RDIMM / DDR4-2666MHz

Add product comparison

Product Overview Product specifications Relevant information

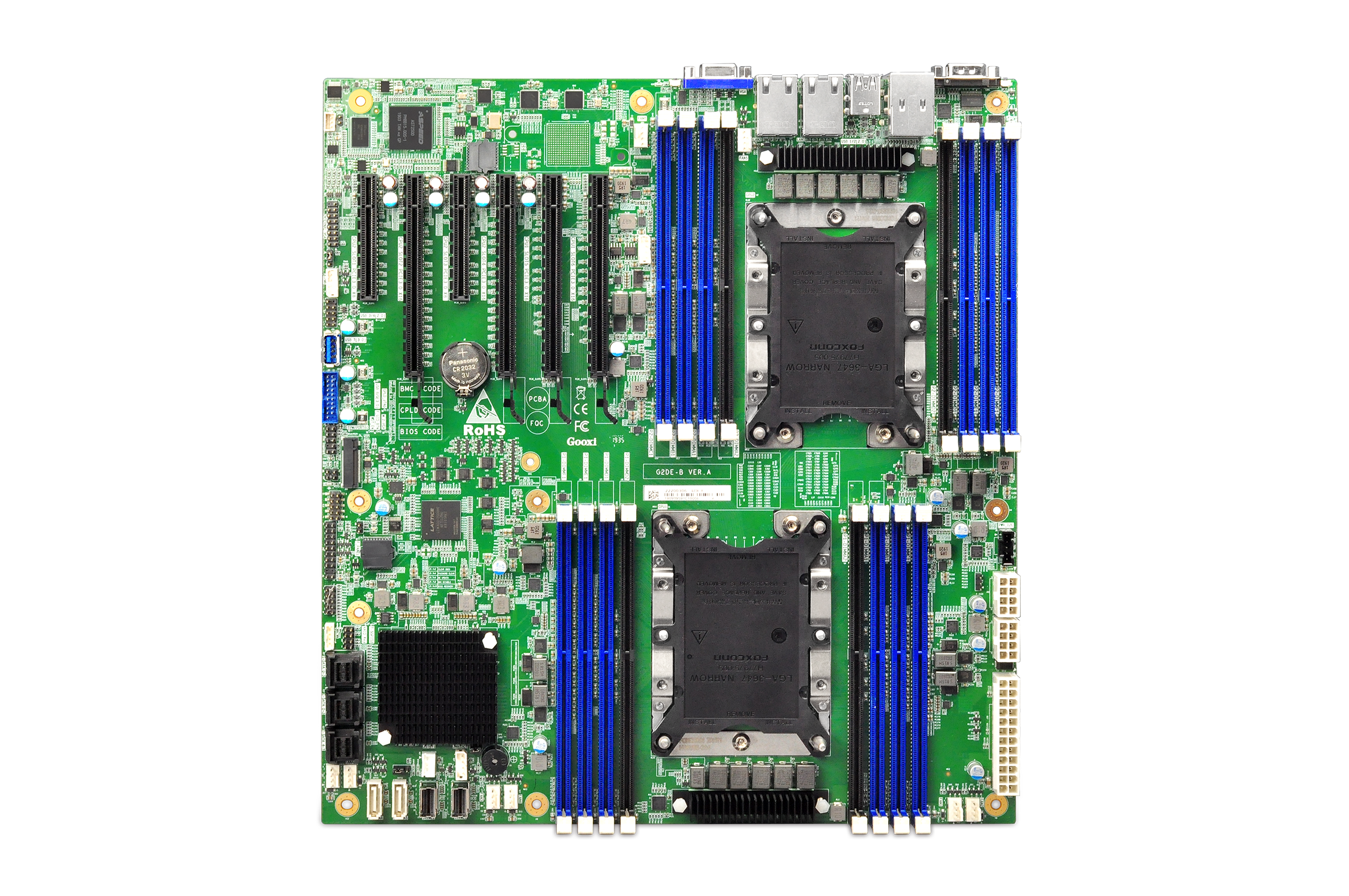

Gooxi G2DE-B dual-socket E-ATX standard server motherboard, based on Intel® X86 architecture, using Intel® Purley platform (Intel® PCH C620 chipset, with Intel® Xeon® Scalable Processors, compatible with 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP). Support dual-channel 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

Feature Highlights

Support 1/2 1st/2nd Gen Intel® Xeon® Scalable series processors
The memory adopts 16 DIMM Dual Channel, and supports up to 4TB ECC RDIMM/LRDIMM
The motherboard (MB)supports 4 PCIe3.0 x16 and 2 PCIe3.0 x8 expansion Slots
MB PCH can support up to 14 SATA3.0 interfaces (3* 8643 Connector+2* SATA DOM), support RAID 0/1/5/10
MB has 2 Gigabit (optional 2* 10 Gigabit) network controllers, and the network chip adopts Marvell 88E1512 (optional INTEL X557-AT2 chip)
MB adopts ultra-low Rds(on) resistance power Positive MOS and optimized DC-DC switching power supply design, which can achieve a power conversion rate of more than 90%. Tailor-made BIOS, turning off unnecessary functions to reduce power consumption; BMC chip accurately adjusts fan speed via temperature monitoring to save energy
G2DE-B/TB MB has independent IPMI Gigabit management network port, which can realize remote management & control, and KVM function

System model	G2DE-B
Processor	1 or 2* 1st/2nd G Intel® Xeon ® Scalable processors (LGA3647 socket), up to 205W
Chipset	Intel® C621/Intel® C622
Memory	16 DIMM DDR4 memory slots, supports DDR4 2933/2666/2400MHz LRDIMM/RDIMM memory
PCle slot	Slot1：PCI-Express 3.0 x8 from CPU1 Slot2：PCI-Express 3.0 x16 from CPU1 Slot3：PCI-Express 3.0 x8 from CPU1 Slot4：PCI-Express 3.0 x16 from CPU1 Slot5：PCI-Express 3.0 x16 from CPU0 Slot6：PCI-Express 3.0 x16 from CPU0
Rear I/O interface	1 M.2(PCIe3.0 x4) port、3 个 MiniSAS HD ports、2 个 SATA DOM ports、2 个 Slimline 4i ports
Onboard interface	1 VGA, 1 DB-9COM port, 2 USB3.0, 2 USB2.0, 1 management network port, 2 RJ45 network ports
Network	Onboard Dual Marvell 88E1512 1G PHY (Option INTEL X557-AT2 10G PHY )
Display	1 AST2500 VGA Connector+1x JVGA Header
Power Supply	Standard 24pin ATX power input, 2 x 8pin power connections
Administration	IPMI2.0
Security	Support TPM module
Operating system	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Working temperature	Temperature 5 ℃~35 ℃/humidity 20%~80% RH non condensing

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
