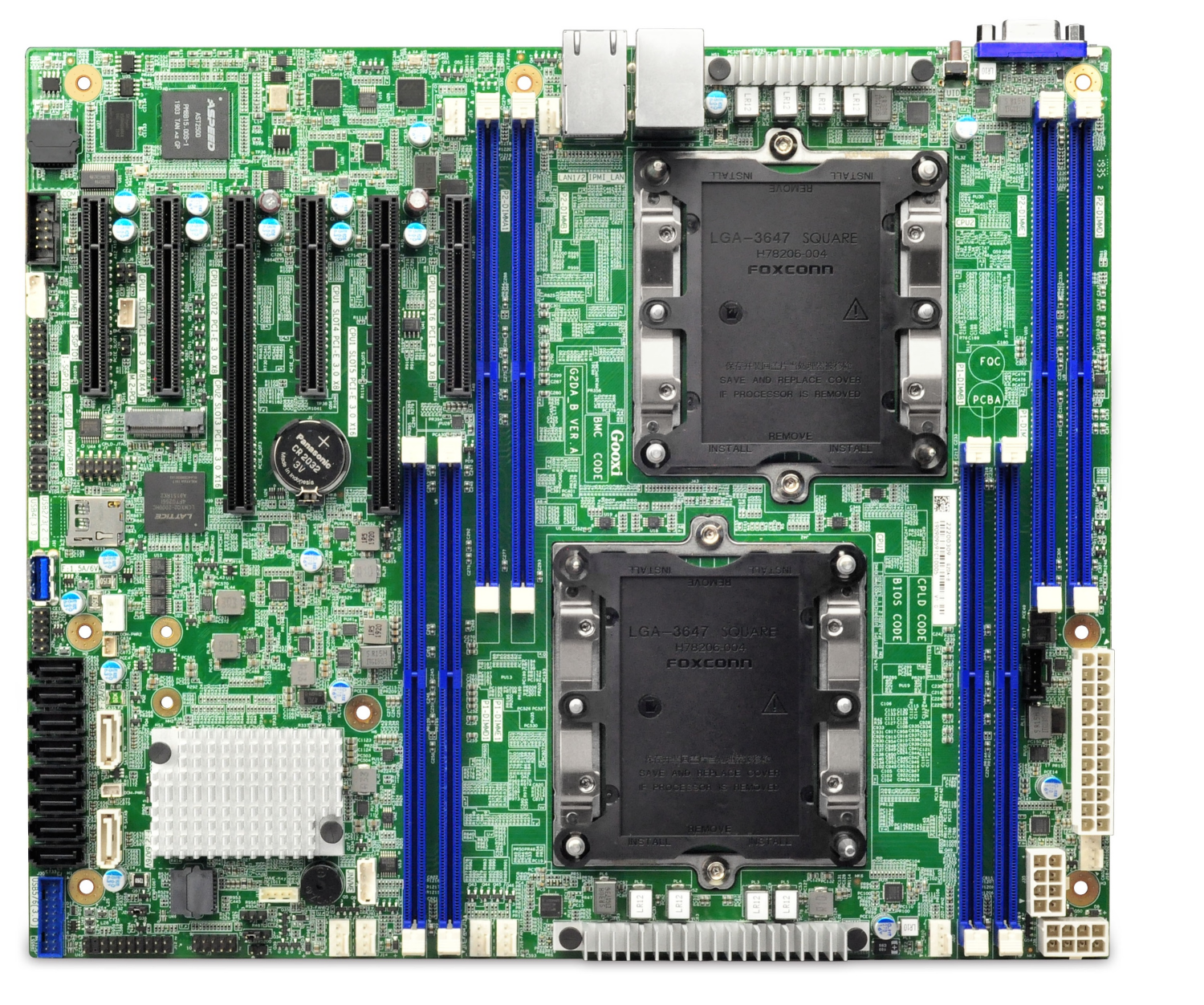

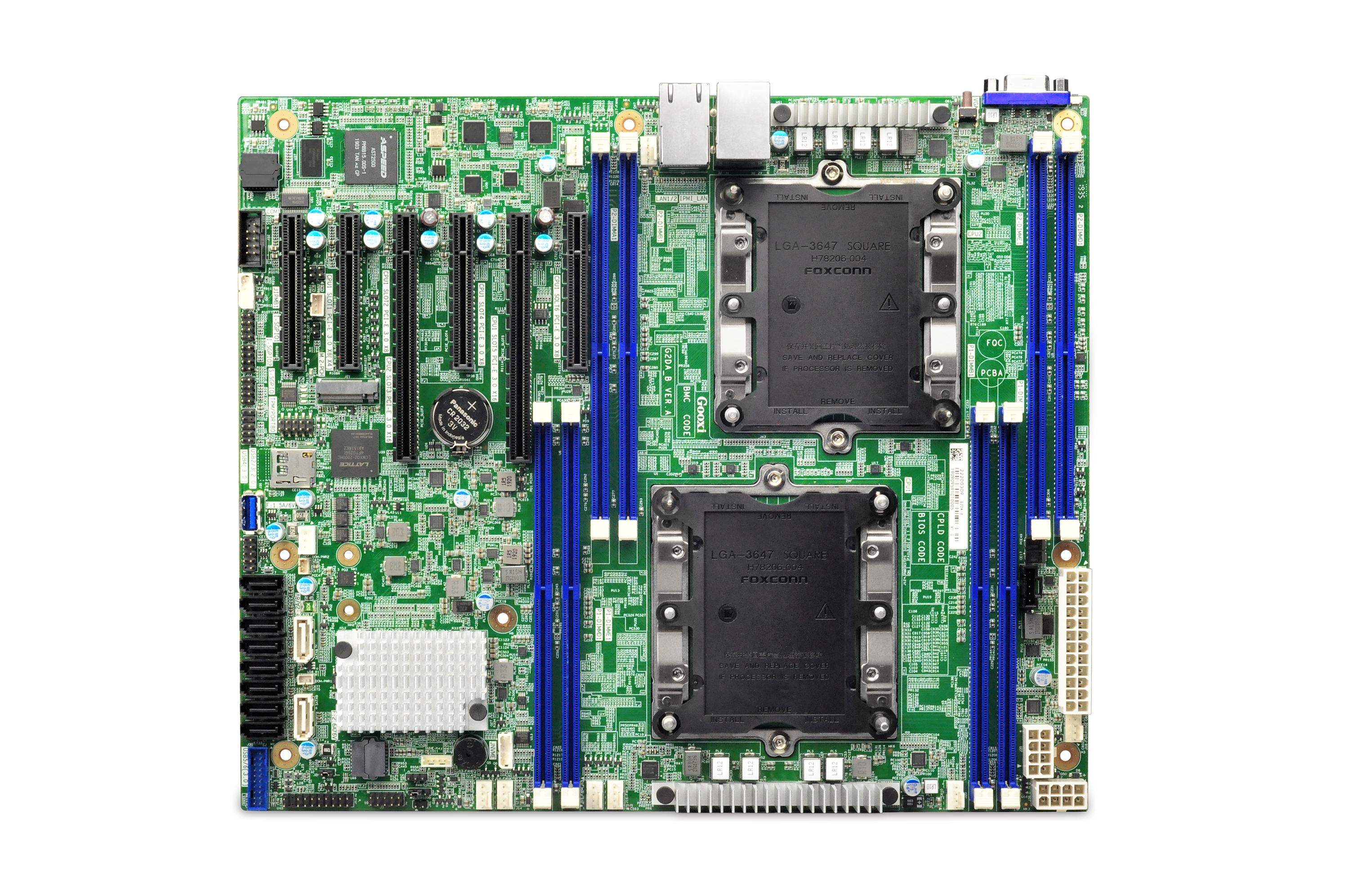

G2DA-B

Intelligent security

ATX standard motherboard /Supports 1/2 1st/2nd Gen Intel® Xeon® Scalable series Processors

Add product comparison

Product Overview Product specifications Relevant information

Gooxi G2DA-B dual-socket ATX standard server motherboard, based on Intel® X86 architecture design, using Intel® Purley platform (Intel® PCH C620 chipset, with Intel® Xeon® Scalable Processors, compatible with 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP). Supports dual-channel 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

Feature Highlights

Supports 1/2 1st/2nd Gen Intel® Xeon® Scalable series Processors, TDP up to 140W
The memory adopts 8 DIMM Dual Channels, and supports up to 2TB ECC RDIMM/LRDIMM
The motherboard (MB) supports 2 PCIe3.0 x16, 3 PCIe3.0 x8 and 1 PCIe3.0 x4(in x8 Slot)
MB PCH can support up to 10 SATA3.0 interfaces, support RAID 0/1/5/10
MB has 2 Gigabit network controllers onboard
MB adopts ultra-low Rds(on) resistance power Positive MOS and optimized DC-DC switching power supply design, which can achieve a power conversion rate of more than 90%. Tailor-made BIOS, turning off unnecessary functions to reduce power consumption; BMC chip accurately adjusts fan speed via temperature monitoring to save energy
G2DA-B MB has independent IPMI Gigabit management network port, which can realize remote management & control, and KVM function

System model	G2DA-B
Processor	1 or 2* 1st/2nd G Intel® Xeon ® Scalable processors (LGA3647 socket), up to 140W
Chipset	Intel® C621
Memory	8 DIMM DDR4 memory slots, supports DDR4 2933/2666/2400MHz LRDIMM/RDIMM memory
PCle slot	Slot1：PCI-Express 3.0 x4（in x8 Slot) from CPU0 Slot2：PCI-Express 3.0 x8 from CPU0 Slot3：PCI-Express 3.0 x16 from CPU1 Slot4：PCI-Express 3.0 x8 from CPU0 Slot5：PCI-Express 3.0 x16 from CPU0 Slot6：PCI-Express 3.0 x8 from CPU

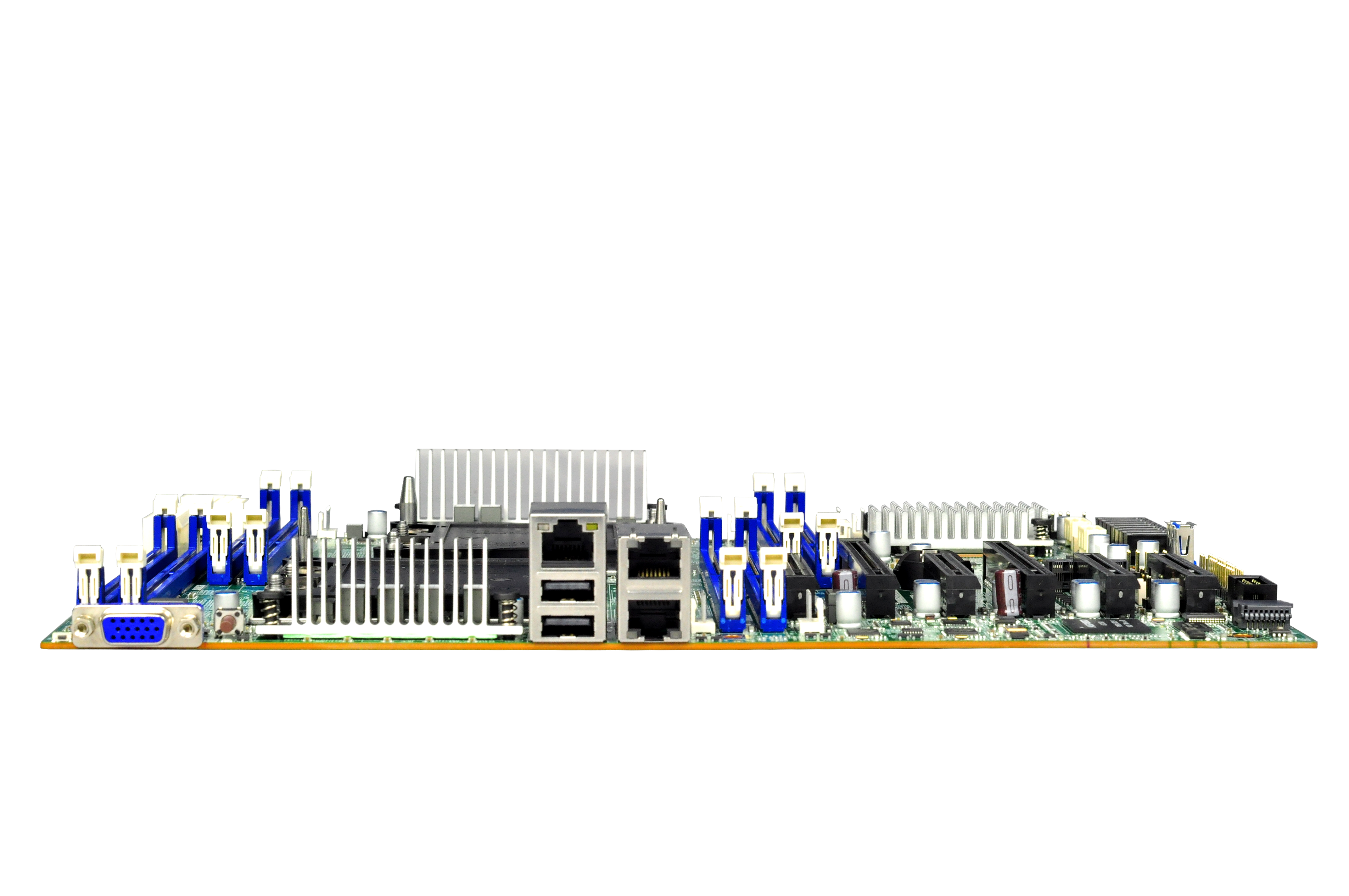

Rear I/O interface	1 RJ45 management network port 1 M.2(SATA/PCIe3.0 x4) port, 8 SATA network port
Onboard interface	1 VGA, 2 USB3.0, 1 management network port, 2 RJ45 network ports
Network	1 management network port, and 2 RJ45 network ports
Display	Rear LED: UID LED, Internal: PWROK LED, BMC Heartbeat LED, CPLD LED,M.2 Active LED
Power Supply	Standard 24pin ATX power input, 2 x 8pin power connections
Administration	1 dedicated management network port
Security	Support TPM module
Operating system	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Working temperature	Temperature 5 ℃~35 ℃/humidity 20%~80% RH non condensing

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
