Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > General Computing > Intel > Purley > Dual-Socket Server

Dual-Socket Server

Storage-Compute Convergence

Support 1/2 1st/2nd Gen Intel Xeon Scalable Processor / Support 24 DDR4 2933MHz memory / Support 8 hot-swap SAS/SATA/NVMe(HDD/SSD/U.2）

Applicable Solution

Cloud Computing, Cloud Storage, Ai Vision, Big Data Processing

Add to Compare

Product Overview Product Specifications Relevant Information

Ultrahigh Computing

Supports 2 1st/2nd Gen Intel Xeon Scalable Sky Lake & Cascade Lake series processors, TDP power consumption is up to 205W; the processor has a maximum of 28 cores, providing superb computing power; Supports 2 high-power GPUs, effectively meeting the high computing demands of applications such as digital currency, cloud computing, big data, and virtual computing.

Massive Storage & High Scalability

Up to 24* DIMM slots.Up to 8* 3.5”+rear 4* 3.5” or 4* 2.5” hot-swap hard disks, providing excellent data storage & expansibility.11* PCIe expansion slots.

Availability & Security

Full modular hard disk, PSU, fan & PCIe show the changeable, replaceable, expandable & low power system. Newest BMC tech to simplify maintenance, improve availability, ensure stable operation & reduce downtime. RAID Level by various RAID controllers for data integrity.

AI Remote Management

IPMI remote management enables real-time monitoring of the system and operation incl. power on/off, to ensure system’s maintenance.Truly Redundant architecture, incl. fan, PSU, storage.

System Model	SL201-D08R/-NV
Processor	Supports 1/2 1st - and 2nd-generation Intel Xeon ® scalable series processors
Chipset	Intel® C621 series dedicated processor chipset
Memory	24* DDR4 memory slots for 2400 MHZ, 2666 MHZ, and 2933MHz DDR4 memory
Storage Controller	Internal: PCH supports RAID 0\1\10&5 External Hbas (non-RAID) : 12* Gbps SAS HBA

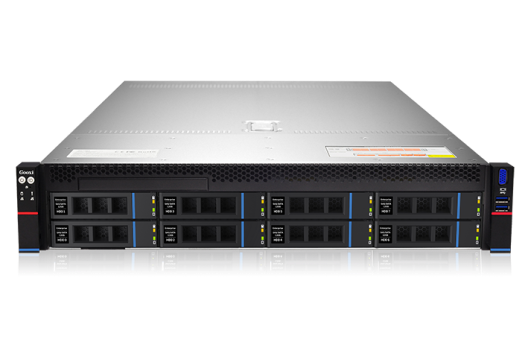

Storage	Front: 8* 3.5/2.5 "SAS/SATA/NVMe hot-swap hard drives Rear: 4 3.5" SAS/SATA hard drives or 4 2.5 "SAS/SATA/U.2 hard drives with 2 2.5" SSDS Internal storage: 2* PCIe 3.0 x4 M.2 ports, 2* SATA 7PIN slots (supporting SATA DOM)
Network	2pcs 1GbE (RJ45) onboard

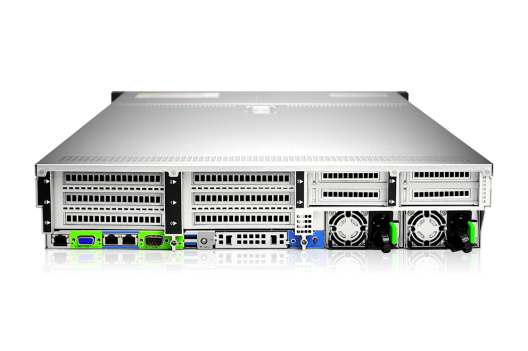

I/O Ports	Front: 1* VGA and 2* USB3.0 Rear: 1* VGA, 2* USB3.0, 1 management network port, and 2 RJ45 network ports OCP slot: 1 OCP 3.0 (PCIe x 8)
PCIe Expansion	Riser1：3* full-height PCIe 3.0 x8 or 1* full-height PCIe 3.0 x16、1full-height PCIe 3.0 x8 Riser2：3full-height PCIe 3.0 x8 or 1full-height PCIe 3.0 x16、1full-height PCIe 3.0 x8 Riser3：1half-height PCIe 3.0 x8、1half-height PCIe 3.0 x8(in x16 Slot) or 1half-height PCIe 3.0 x16 Riser4：1half-height PCIe 3.0 x8、1half-height PCIe 3.0 x8(in x16 Slot) or 1half-height PCIe 3.0 x16 OCP：1*OCP 3.0(PCIe 3.0 x8)
Power Supply	Supports 550W, 800W, 1300W, 1600W, 2000W, and 2200W redundant power supplies
Fan	4* 8038 N+1 Redundant hot-swap fans, optional 4* 8056 N+1 hot-swap Redundant fans
Management	Onboard iBMC management module supports management features such as IPMI, SOL, KVM Over IP, and virtual media
Security	TPM/TCM (optional) Chassis open intrusion detection Locked upper cover of chassis
Operating System	Microsoft WindowServer、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	748 x 433.4 x 87.6mm(D * W * H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
