Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > General Computing > Intel > Whitley > Dual-Socket Server

Dual-Socket Server

Massive Storage

Supports 1 or 2 Gen3 Intel® Xeon® Scalable ICE Lake processor / 32 DDR4 slots, supports 2666/2933/3200MHz DDR4 memory / Supports 36 hot-swap SAS/SATA (HDD/SSD）

Applicable solution

Cloud Storage, Warm/Cold Data Storage

Add to Compare

Product Overview Product Specifications Relevant Information

Ultrahigh Computing

Supports the full range of Intel ICE Lake processors, TDP up to 270W, 40 cores. Dominant frequency up to 3.6GHz. Improved kernel, frequency, cache & interconnection channel. DDR4 technologies, 12TB memory expansibility for digital currency, cloud computing, big data & virtual computing.

Massive Storage & High Scalability

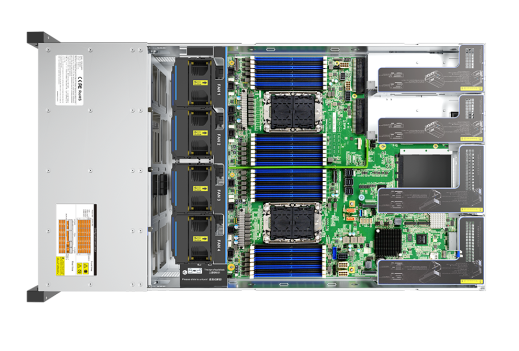

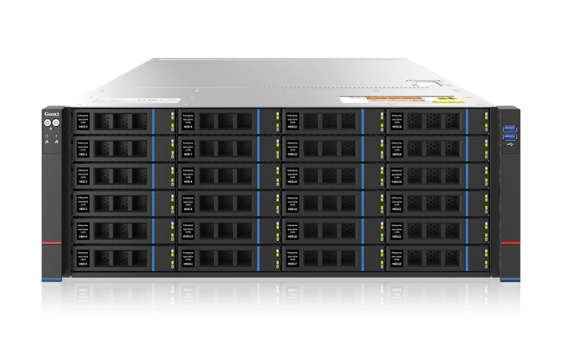

Up to 32* DIMM slots.Up to 36* 3.5”+rear 4* 3.5” or 4* 2.5” hot-swap hard disks, providing excellent data storage & expansibility.11* PCIe expansion slots.

Availability & Security

Full modular hard disk, PSU, fan & PCIe show the changeable, replaceable, expandable & low power system. Newest BMC tech to simplify maintenance, improve availability, ensure stable operation & reduce downtime. RAID Level by various RAID controllers for data integrity.

AI Remote Management

IPMI remote management enables real-time monitoring of the system and operation incl. power on/off, to ensure system’s maintenance.Truly Redundant architecture, incl. fan, PSU, storage.

System Model	SL401-D36RE-G3
Processor	Support 1* or 2* Gen3 Intel® Xeon® Scalable ICE Lake processors, 83xx/63xx/53xx/43xx processors, maximum CPU TDP 270W
Chipset	Intel® C621 A series dedicated processor chipset
Memory	32* DDR4 slots, supports 2666/2933/3200MHz DDR4 memory
Storage Controller	Internal PCH supports RAID 0\1\10&5 External HBA (not RAID): 12 Gbps SAS HBA
Storage	Front : supports 24 hot-swappable 3.5/2.5-inch SAS/SATA hard drives Rear: supports 12 hot-swappable 3.5/2.5-inch SAS/SATA hard drives. Optional 4x 3.5" SAS/SATA or 4x 2.5" SAS/SATA/U.2 hard drives Internal storage: 2 PCIe 4.0 x4 M.2 ports, 2 SATA 7PIN slots (support SATA DOM), 3 MiniSAS HD ports
Network	2x 1GbE (RJ45) onboard
I/O Ports	Front port: 2x USB2.0 Rear: 1 VGA, 2 USB3.0, 1 management network port, 2 RJ45 network ports OCP slot: 1 OCP 3.0 (PCIe x 8)
PCIe Expansion	Riser1：1x full-height PCIe 4.0 x16、2x full-height PCIe 4.0 x8 or 2x full-height PCIe 4.0 x16 Riser2：1x full-height PCIe 4.0 x16、2x full-height PCIe 4.0 x8 or 2x full-height PCIe 4.0 x16 Riser3：1x half-height PCIe 4.0 x16 or 1x half-height PCIe 3.0 x8、1x half-height PCIe 3.0 x8(in x16 Slot) Riser4：1half-height PCIe 3.0 x8, 1half-height PCIe 3.0 x8(in x16 Slot) OCP：1*OCP 3.0(PCIe 3.0 x8)
Power Supply	Support 550W, 800W, 1300W, 1600W, 2000W, 2200W redundant power
Fan	8* 8038 N+1 Redundant hot-swap fans
Management	Onboard iBMC management module, support IPMI, SOL, KVM Over IP, virtual media and other management features
Security	TPM/TCM (optional) ,Chassis open intrusion detection ,Locked upper cover of chassis
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	798 x 433.4 x 176.5mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
