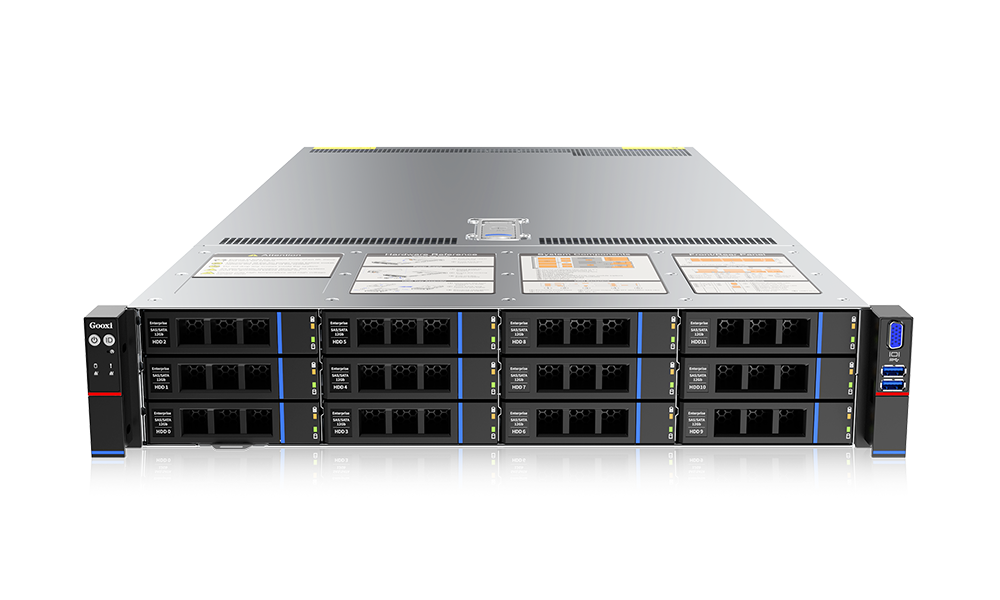

Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > General Computing > Dual-Socket High-End Server

Dual-Socket High-End Server

Dual-Socket High-Performance Computing

Designed for application scenarios such as cloud computing, HPC, virtualization, telecommunications, and big data analytics. Supports 2 6th Gen Intel® Xeon® Scalable processors with up to 86 cores / 172 threads per CPU and a maximum TDP of 350W. Compatible with the 6500P and 6700P CPU series. Equipped with 12 PCIe 5.0 slots to meet extensive expansion requirements with powerful computing performance.

Applicable Solutions

Cloud Computing, HPC, Virtualization, Telecommunications, Big Data Analytics

Add to Compare

Product Overview Product Specifications Relevant Information

Significant Boost in Computing Performance

Supports 1 or 2 6th Gen Intel® Xeon® Scalable processors, with up to 86 cores per CPU and a 25% improvement in general performance. Features 4 UPI 2.0 buses with up to 24 GT/s per link, delivering a 33% increase in CPU communication speed. Supports 32 DDR5 ECC memory slots at 6400MT/s, enhancing memory bandwidth by 12%.

Exceptional Storage and Flexible Expansion

Supports mixed installation of up to 12 × 3.5"/2.5" SATA/SAS/U.2 drives, offering massive data storage capacity. Equipped with up to 10 PCIe 5.0 standard slots and 2 PCIe 5.0 OCP 3.0 slots to meet a variety of expansion needs.

Convenient Management and Intelligent Maintenance

Features iKVM remote management, allowing access via keyboard, video, and mouse for enhanced convenience. Modular design enables hot-swappable replacement of peripheral components for greater efficiency. Automatically saves failure logs and supports remote diagnostics for faster troubleshooting. Real-time monitoring of key components with automatic fault reporting for smarter system management.

System Model	SL201-D12R-NV-G5
Processor	Supports 1 or 2 Intel® Xeon® (SP) 6 processors, with up to 86 cores / 172 threads per CPU and a maximum TDP of 350W. Supports 6500P and 6700P series CPUs.
Memory	32 DDR5 memory slots, supporting DDR5 RDIMM-3DS/RDIMM 6400 MHz memory
Storage Controller	2 NVMe M.2 SSD interfaces
Storage	Front supports 12 hot-swap 3.5/2.5" SAS/SATA/U.2 drives; optional rear support for two 2 × 2.5" drive modules
I/O Ports	Front: 1 VGA, 2 USB 3.0 Rear: 1 VGA, 1 COM port, 2 USB 3.0, 1 RJ45 Gigabit management port
PCIe Expansion	6× PCIe full-height slots, 4× PCIe half-height slots, 2× OCP 3.0 slots
Power Supply	Supports two AC 220V power modules of 800W, 1300W, 1600W, 2000W, 2200W, or 2600W, with hot-swap capability and 1+1 redundancy mode
Fan	Standard configuration includes 4 hot-swappable fans with N+1 redundancy, supporting 8038/8056 specifications
Management	1 dedicated RJ45 management port
Security	Supports TPM 2.0 module, chassis intrusion alert, and BMC/BIOS redundancy
Operating System	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu
Server Size	799 x 433.4 x 87.6 mm (D * W * H)
Working Temperature	Operating temperature: 5ºC - 35ºC (without direct sunlight); Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
