Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > General Computing > Dual-Socket General Server

Dual-Socket General Server

Dual-Socket High-Performance Computing

Suitable for applications in artificial intelligence, cloud computing, virtualization, and enterprise digitalization. Supports 1 or 2 fourth or fifth-generation Intel® Xeon® Scalable processors with up to 64 cores per processor, 16 DDR5 5600MT/s ECC memory slots, and up to 9 PCIe 5.0 half-height, full-length single-width slots to meet expansion needs.

Applicable Solutions

Artificial Intelligence, Cloud Computing, Virtualization, Enterprise Digitalization

Add to Compare

Product Overview Product Specifications Relevant Information

Enhanced Computing Performance

Supports 1 or 2 4th/5th Gen Intel® Xeon® Scalable processors, each with up to 64 cores. Equipped with four UPI 2.0 buses, each offering up to 16 GT/s. Supports 16 DDR5 5600 MT/s ECC memory modules, delivering a 75% increase in memory bandwidth. Fully compatible with PCIe 5.0, providing a 100% bandwidth boost.

Superior Storage and Flexible Expansion

Supports up to twelve 3.5"/2.5" SATA/SAS/U.2 drives, delivering substantial data storage capacity. Offers up to nine PCIe 5.0 slots, ensuring ample expansion capability.

Convenient Management and Intelligent Maintenance

Equipped with iKVM remote management for convenient control via keyboard, display, and mouse. Modular design allows hot-swapping of peripheral components, enhancing maintenance efficiency. Automatically logs faults and supports remote diagnostics for quicker troubleshooting. Real-time monitoring of key components with automatic fault reporting for intelligent management.

System Model	AS201-D12R-NV-G4
Processor	Supports 2 Intel® Xeon® 4th/5th Gen Scalable Processors, with TDP up to 350W
Chipset	Intel® C741 Series Server-Specific Chipset.
Memory	16 DDR5 memory slots, supporting DDR5 4400/4800/5600MHz RDIMM memory
Storage Controller	2 M.2 (PCIe 5.0 x4) interfaces, 3 MiniSAS HD interfaces, 2 SATA DOM interfaces

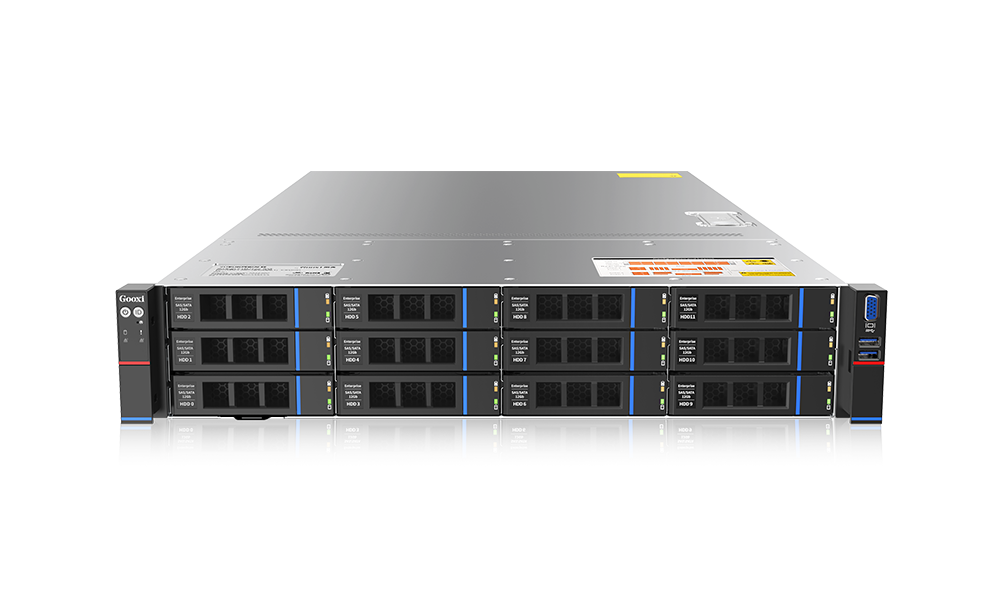

Storage	Front supports up to 8 Hot-Swap SATA/SAS/NVMe drives and 4 SATA/SAS drives

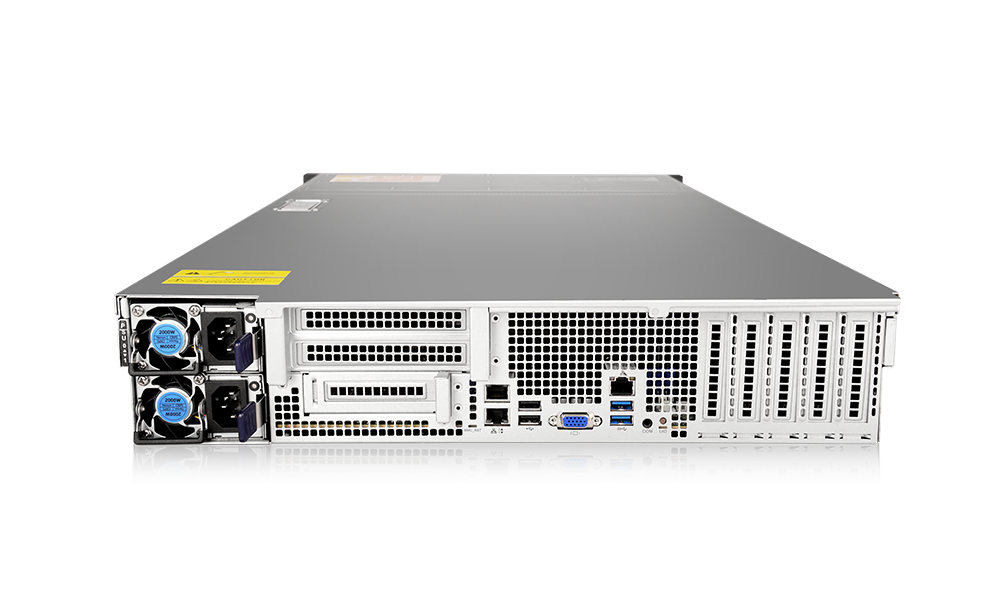

I/O Ports	Front: 2 USB 3.0, 1 VGA Rear: 1 VGA, 1 COM, 2 USB 3.0, 1 management network port, 2 RJ45 network ports
PCIe Expansion	Up to 9 PCIe 5.0 slots
Power Supply	800W/1300W/1600W/2000W CRPS 1+1 Redundant Power
Fan	Standard configuration: 4 x 8038 hot-swappable N+1 redundant fans
Management	1 RJ45 management port
Security	Supports TPM/TCM hardware encryption module, supports BMC remote access encryption, supports BIOS access encryption
Operating System	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu
Server Size	745 * 444 * 87.6 mm (D * W * H)
Working Temperature	Operating Temperature: 5ºC - 35ºC (without direct sunlight); Storage Temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
