Dual-Socket Server

Dual-Socket High-Performance Computing

Dual-Socket High-Performance Computing

Suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecom business applications. Supports 1 or 2 4th/5th Generation Intel® Xeon® Scalable processors, DDR5 4400/4800/5600MHz ECC memory, and 12 PCIe 5.0 slots. With robust computing performance and flexible configurations, it meets the application needs of various industries.

Applicable Solutions

Virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, telecom business
Product Overview Product Specifications Relevant Information

Comprehensive Performance Enhancement

Supports 1 or 2 4th/5th Generation Intel® Xeon® Scalable processors, with up to 60 cores per processor, delivering a 15% increase in general performance. Supports 4 UPI 2.0 buses, each with a maximum speed of 16 GT/s, enhancing CPU communication speed by 25%. Supports 32 DDR5 memory slots with frequencies of 4400/4800/5600 MHz, improving memory bandwidth by 50%. Fully supports PCIe 5.0 protocol with PCIe standard slots and OCP 3.0 slots, doubling the bandwidth.

Superior Storage and Flexible Expansion

Supports up to 36 mixed 3.5″/2.5″ SATA/SAS/U.2 drives, providing users with massive data storage capacity. Supports up to 10 PCIe 5.0 standard slots and 2 PCIe 5.0 OCP 3.0 slots, meeting expansion needs.

Convenient Management and Intelligent Maintenance

Offers iKVM remote management functionality, allowing remote management through keyboard, display, and mouse for added convenience. Modular design allows for non-stop replacement of peripheral components, enhancing efficiency. Automatically saves fault logs and supports remote diagnostics for quicker issue resolution. Monitors the status of key components in real-time, with automatic fault reporting for smarter management.
System Model SL401-D36RE-G4
Processor Supports 1 or 2 4th/5th Generation Intel® Xeon® Scalable processors, with a maximum TDP of 350W
Chipset Intel® C741 series server-specific chipset.
Memory 32 DDR5 memory slots, supporting DDR5 RDIMM-3DS/RDIMM 4400/4800/5600MHz memory
Storage Controller 3 Mini SAS HD interfaces, 2 SATA/NVMe M.2 SSD interfaces, 14 MCIO interfaces

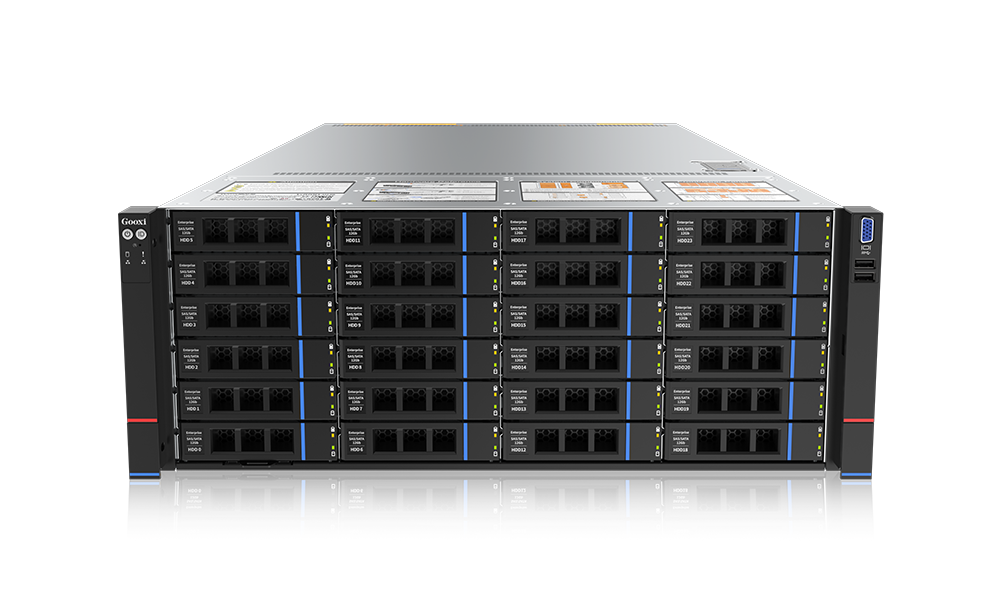

Storage Front: Supports 24 hot-swappable 2.5” SATA/SAS hard drives

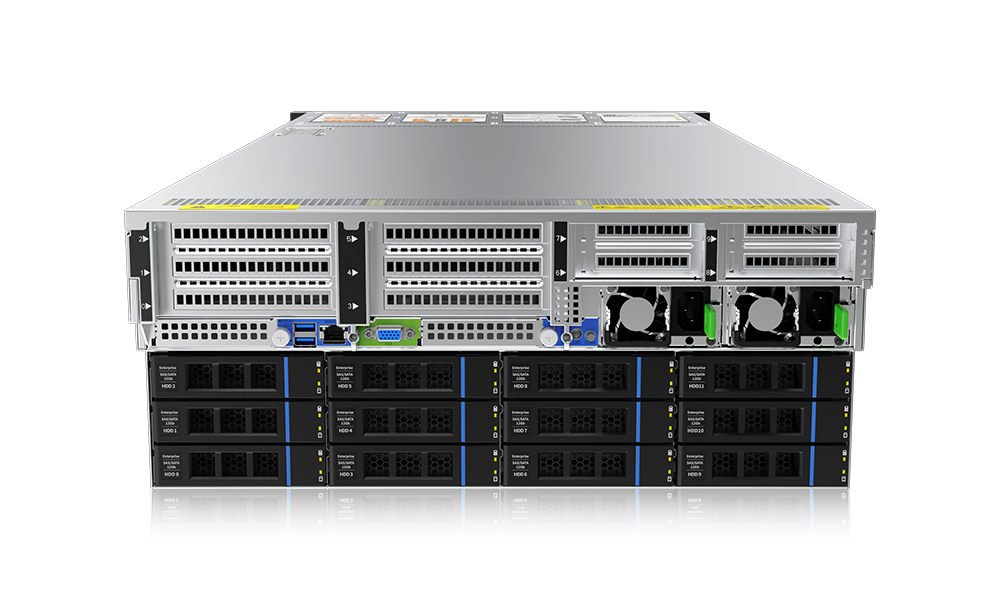

Rear: Supports 12 hot-swappable 3.5” SATA/SAS hard drives
Optional rear I/O: Supports 2 × 2.5” SATA/SAS or U.2 hard drive modules
Network Supports 2 OCP 3.0 network cards
I/O Ports Front Ports: 1 VGA, 2 USB 3.0
Rear Ports: 1 VGA, 1 COM port, 2 USB 3.0, 1 RJ45 Gigabit management network port
PCIe Expansion PCIe expansion form
6x PCIe full-height slots, 4x PCIe half-height slots, 2x OCP 3.0 slots
PCIe expansion specifications
Riser1/2:
1x full-height PCIe 5.0 x16, 2x full-height PCIe 5.0 x8, 2x full-height PCIe 5.0 x16
Riser3/4:
2x half-height PCIe 5.0 x8, 1x half-height PCIe 5.0 x16
OCP:
2x OCP 3.0 (PCIe 5.0 x8)
Power Supply Supports AC 220V redundant power supplies of 800W, 1300W, 1600W, 2000W, 2200W, and 2600W (adapted according to actual power requirements)
Fan Standard with 8 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications
Management 1 dedicated RJ45 management network port
Security Optional support for TPM module
Operating System Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu
Server Size 830 x 444 x 176.5 mm (D*W*H)
Working Temperature Operating Temperature: 5ºC - 35ºC (without direct sunlight); Storage Temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
