Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location:

Home > Products > Product List > General Computing > Dual-Socket Server

Dual-Socket Server

Dual-Socket High-Performance Computing

Dual-Socket High-Performance Computing

Suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, or telecommunications applications. Supports two fourth/fifth generation Intel® Xeon® Scalable processors, DDR5 4400/4800/5600MHz ECC memory, and 12 PCIe 5.0 slots. With powerful computing performance and flexible configuration, it meets the needs of various industries.

Applicable Solutions

Virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise markets, telecommunications
Product Overview Product Specifications Relevant Information

Comprehensive Performance Enhancement

Supports 1 or 2 fourth/fifth-generation Intel® Xeon® Scalable processors, with up to 60 cores per processor, offering a 15% increase in general performance. Supports four UPI 2.0 buses, each with a maximum UPI rate of up to 16 GT/s, enhancing CPU communication speed by 25%. Supports 32 DDR5 4400/4800/5600 MHz ECC memory modules, increasing memory bandwidth by 50%. Supports PCIe standard slots and OCP 3.0 slots, fully supporting the PCIe 5.0 protocol, increasing bandwidth by 100%.

Superior Storage and Flexible Expansion

Supports mixed insertion of 24 2.5" SAS/SATA/U.2 hard drives, providing users with massive data storage capabilities. Supports up to 10 PCIe 5.0 standard slots and 2 PCIe 5.0 OCP 3.0 slots, meeting expansion needs.

Convenient Management and Intelligent Maintenance

Offers iKVM remote management functions, allowing remote management via keyboard, monitor, and mouse for greater convenience. Modular design allows for the replacement of peripheral components without shutting down, increasing efficiency. Automatically saves fault logs and supports remote diagnostics for quicker problem resolution. Real-time monitoring of key component status and automatic fault reporting make the system smarter.
System Model SL201-D24R-NV-G4
Processor Supports 1 or 2 4th/5th Generation Intel® Xeon® Scalable Processors, with a maximum TDP of 350W
Chipset Intel® C741 series server-specific chipset
Memory 32 DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600 MHz memory
Storage Controller 3 Mini SAS HD interfaces, 2 SATA/NVMe M.2 SSD interfaces, 14 MCIO interfaces

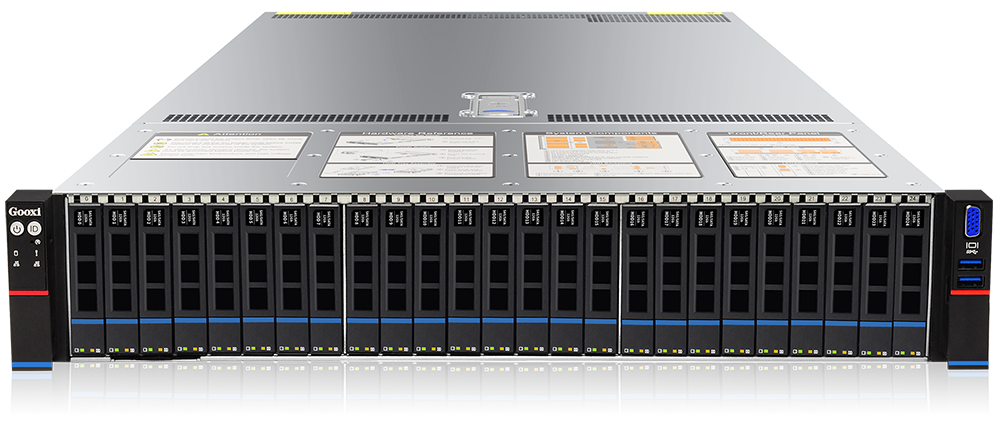

Storage Supports 24 hot-swappable 2.5" SAS/SATA/U.2 hard drives in the front, optional two 2×2.5" hard drive modules in the rear
Network Supports 2 OCP 3.0 network cards
I/O Ports Front Ports: 1 VGA, 2 USB3.0

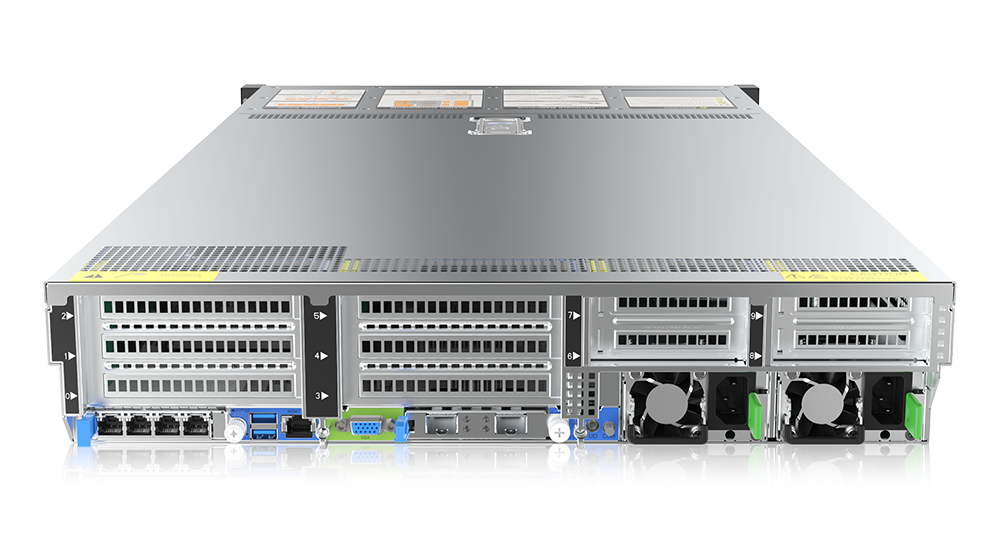

Rear Ports: 1 VGA, 1 COM port, 2 USB3.0, 1 RJ45 Gigabit Management Network Port
PCIe Expansion PCIe expansion form
6x PCIe full-height slots, 4x PCIe half-height slots, 2x OCP 3.0 slots
PCIe expansion specifications
Riser1/2:
1x full-height PCIe 5.0 x16+2x full-height PCIe 5.0 x8
2x full-height PCIe 5.0 x16
Riser3/4:
2x half-height PCIe 5.0 x8
1x half-height PCIe 5.0 x16
OCP:
2x OCP 3.0(PCIe 5.0 x8)
Power Supply Supports AC 220V 800W, 1300W, 1600W, 2000W, 2200W, 2600W redundant power supply (adapted to the actual power)
Fan Standard 4 hot-swappable N+1 redundant fans, supporting 8038/8056 specifications
Management 1 dedicated RJ45 management network port
Security Supports TPM 2.0 module, chassis intrusion alarm, BMC/BIOS redundancy
Operating System Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu
Server Size 799*433.4*87.6mm(D*W*H)
Working Temperature Working temperature: 5ºC - 35ºC (without direct sunlight); Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
