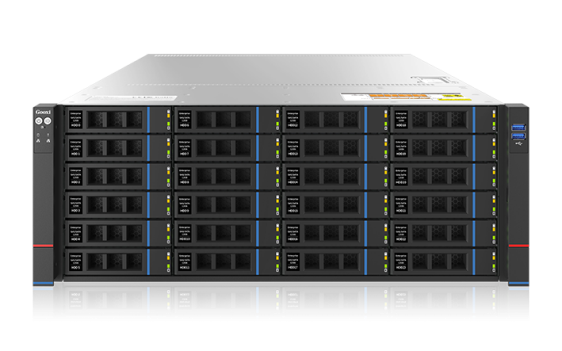

Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > General Computing > Dual-Socket Server

Dual-Socket Server

Storage-Compute Convergence

Supports 2 AMD EPYC 9004 (Genoa) processors/24 DDR5 memory slots, 4800, 4400 DDR5 RDIMM memory/24 hot-swap SAS/SATA/(HDD/SSD)

Applicable solution

cloud computing, Virtualization, Big Data Processing

Add to Compare

Product Overview Product Specifications Relevant Information

Modular design

General rackmount chassis; a variety of modular rear windows for rapid response to customer needs; fans, power supplies, and hard drives are all modular designed to improve system reliability and heat dissipation, and facilitate future maintenance.

Strong scalability

Supports 8 PCle5.0 and 2 PCle4.0 high-speed expansion slots to provide rich expansion capabilities. Multiple 12Gb SAS/SATA adaptive backplanes are available, offering flexibility and convenience. Customized expansion requirements are available for customers via adapter cards.

High performance

Support two AMD EPYC 9004 (Genoa) series processors; support 24 DDR5 memory slots; support 4800 4400 DDR5 RDIMM memory slots; motherboard supports NVMe(M.2) cache interface to meet high computing requirements for cloud computing, big data, and virtual computing.

Intelligent power supply and temperature control

Adopt 1+1 redundant power supply, support hot-swap replacement, and ensure the stability of the system; adopt intelligent temperature-controlled fan module, support hot-swap replacement, and has excellent shock resistance design.

System Model	SR401-D24RE-G2
Processor	Supports two AMD EPYC 9004 (Genoa) processors
Chipset	/
Memory	24 DDR5 memory slots, support 4800, 4400 DDR5 RDIMM memory
Storage Controller	Onboard 3 MiniSAS SFF-8643 connectors, 2 SATA interfaces, 2 M.2 interfaces (PCIe5.0 X4 signal, 2280), 2 slimlinex8 (PCIe4.0 x8 signal) interfaces
Storage	Front: 24 3.5/2.5 "SAS/SATA hot-swap hard disks Rear: Optional 4x 3.5" SAS/SATA or 4x 2.5" SAS/SATA/NVMe hot-swap hard drives
Network	2x 1GbE (RJ45) onboard
I/O Ports	Front: 2 USB3.0 Rear: 1 VGA, 1 COM port, 2 USB3.0, 1 RJ45 Gigabit management network port, 2 Gigabit RJ45 network ports
PCIe Expansion	Riser1/Riser2：2x PCIe5.0 x16 Riser3：2x PCIe5.0 x8 Riser4：1x PCIe4.0 x16 or 2x PCIe4.0 x8
Power Supply	Support 800W/1300W/1600W/2000W/2200W hot-swap redundant power (adapt according to the actual power)
Fan	Standard 8x 8038 hot-swap redundant fans
Management	1 dedicated RJ45 management network port IPMI2.0
Security	TPM/TCM (optional) Chassis open intrusion detection Locked upper cover of chassis
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	798 x 433.4 x 176.5mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
