Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > General Computing > Dual-Socket Server

Dual-Socket Server

High Density Computing

Supports 1 or 2 Gen3 Intel® Xeon® Scalable ICE Lake processor / 32 DDR4 slots, supports 2666/2933/3200MHz DDR4 memory / Supports 4 hot-swap SAS/SATA (HDD/SSD)

Applicable Solution

Cloud Storage

Add to Compare

Product Overview Product Specifications Relevant Information

Ultrahigh Computing

Supports the full range of Intel ICE Lake processors. Dominant frequency up to 3.6GHz. Improved kernel, frequency, cache & interconnection channel. DDR4 technologies, 12TB memory expansibility for digital currency, cloud computing, big data & virtual computing.

Massive Storage & High Scalability

Up to 32* DIMM slots.Up to 4* 3.5” hot-swap hard disks, providing excellent data storage & expansibility.

Availability & Security

Full modular hard disk, PSU, fan & PCIe show the changeable, replaceable, expandable & low power system. Newest BMC tech to simplify maintenance, improve availability, ensure stable operation & reduce downtime. RAID Level by various RAID controllers for data integrity.

AI Remote Management

IPMI remote management enables real-time monitoring of the system and operation incl. power on/off, to ensure system’s maintenance.Truly Redundant architecture, incl. fan, PSU, storage.

System Model	SL101-D04R-G3
Processor	Supports 1 or 2 Gen3 Intel® Xeon® Scalable ICE Lake processors, 83xx/63xx/53xx/43xx processors, maximum CPU TDP 205W
Chipset	Intel® C621 A series dedicated processor chipset
Memory	32* DDR4 slots, supports 2666/2933/3200MHz DDR4 memory
Storage Controller	Internal PCH supports RAID 0\1\10&5 External HBA (not RAID): 12 Gbps SAS HBA

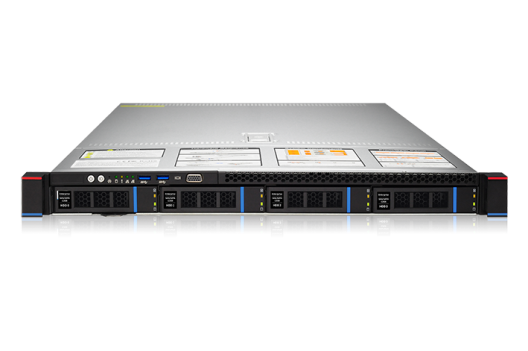

Storage	Front port: 4* 3.5"/2.5" SAS/SATA hot-swap hard drives Internal storage: 2* PCIe 4.0 x4 M.2 interfaces, 2 SATA 7PIN slots (support SATA DOM), 3* MiniSAS HD interfaces
Network	2* 1GbE (RJ45) onboard

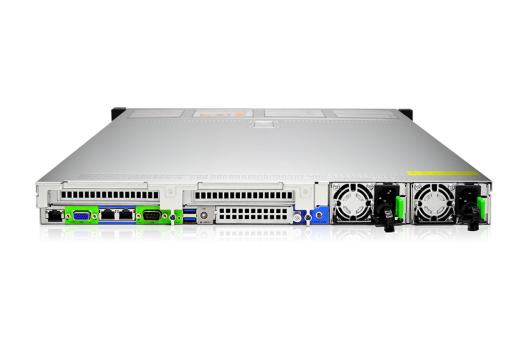

I/O Ports	Front port: 1 VGA, 2 USB3.0 Rear: 1 VGA, 2 USB3.0, 1 management network port, 2 RJ45 network ports OCP slot: 1 OCP 3.0 (PCIe x 8)
PCIe Expansion	2full-height PCIe 4.0 x16，1OCP 3.0(PCIe 3.0 x8)
Power Supply	Support 550W, 800W, 1300W, 1600W, 2000W, 2200W redundant power
Fan	7* 4056 hot-swap fans
Management	Onboard iBMC management module, support IPMI, SOL, KVM Over IP, virtual media and other management features
Security	TPM/TCM (optional) ,Chassis open intrusion detection ,Locked upper cover of chassis
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	748 x 433.4 x 43.6mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
