Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location:

Home > Products > Product List > Intelligent Computing > AMD AI Server

AMD AI Server

Integrated Training and Inference

Powerful computing performance and highly flexible expansion capabilities

Supports up to 2 AMD EPYC Turin 9005 series processors, compatible with Genoa 9004 series, with a maximum TDP of 500W. Offers 24 DDR5 memory slots with frequencies up to 4800/6400MHz, achieving a 75% boost in memory bandwidth. Equipped with 2 onboard PCIe 3.0 M.2 NVMe SSDs (2280). Enables CPU-GPU direct connection and supports 600W dual-width GPU cards. Provides SATA/SAS/NVMe tri-mode drive configurations for high-speed data transfer and storage needs.

Applicable Solutions

Artificial Intelligence ∣ Cloud Gaming ∣ Virtualization ∣ Big Data Analytics ∣ Digital Twin

Product Overview Product Specifications Relevant Information

New Architecture, Extreme Performance

Supports 1 or 2 AMD EPYC Turin processors, compatible with 1 or 2 AMD EPYC Genoa processors; accommodates up to 24 DDR5 6000/4800MT/s ECC memory modules, delivering a 75% increase in memory bandwidth. GPU-CPU direct connection or switch expansion configurations provide unparalleled multi-GPU computing power.

Flexible Topology, Critical Applications

CPU-GPU passthrough design supports up to 8 dual-width GPUs for high-speed, stable performance.

Rich Ecosystem, Robust Reliability

Compatible with leading international and domestic AI accelerator cards; features redundant system components and modularized functional parts to enhance reliability and maintainability. Intelligent remote management and fault diagnostics ensure 24/7 efficient and stable operation.
System Model SYR4108G-D12R-G5
Processor Supports 1 or 2 AMD EPYC Turin processors, compatible with AMD EPYC Genoa processors
GPU Card Supports up to 8 dual-width GPU cards
Memory 24 DDR5 memory slots, compatible with DDR5 4800/6400MHz memory
Storage Controller 2 PCIe3.0 M.2(2280/22110)
Storage Supports 12 hot-swappable 3.5″/2.5″ SAS/SATA/NVMe drives

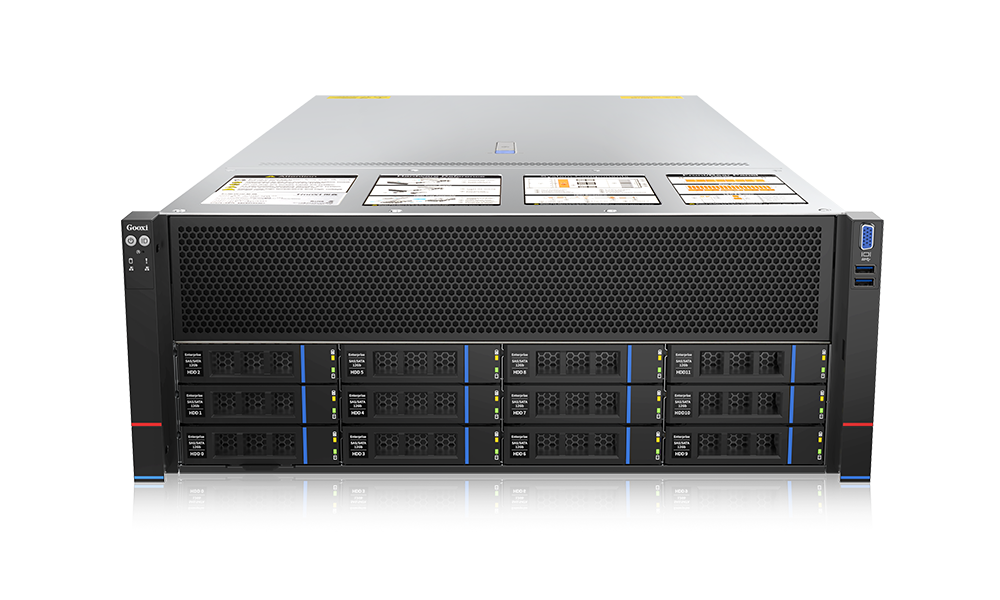

I/O Ports Front: 2 USB 3.0, 1 Power Button, 1 Reset Button, 1 Hard Drive Indicator, 1 System Fault Indicator, 2 Network Indicators

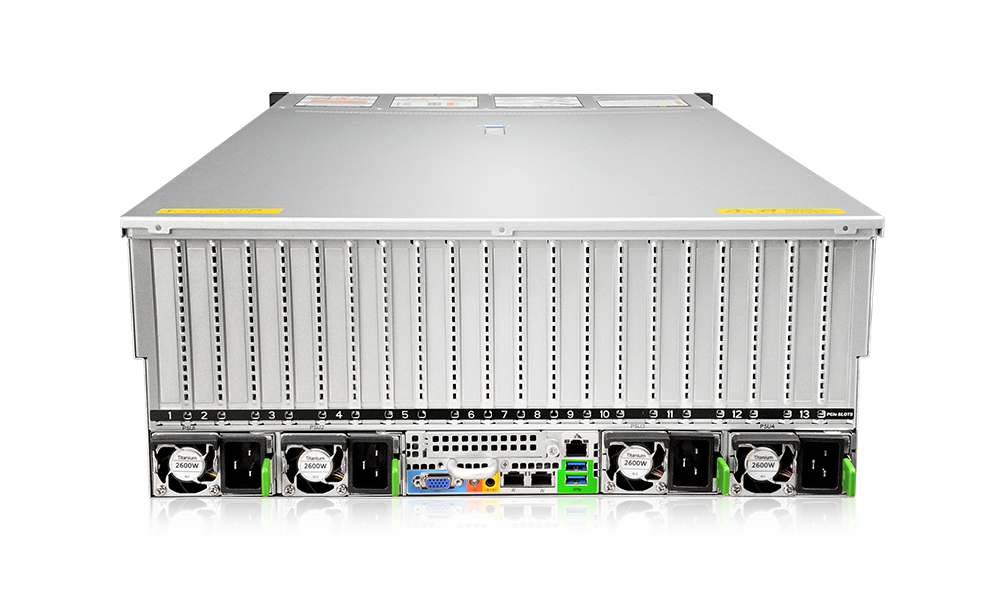

Rear: 1 VGA, 2 USB 3.0, 1 Management Port, 2 RJ45 Ports, 1 Serial Port
PCIe Expansion 20 PCIe 5.0 MCIO (x8)
Supports expansion of 8x PCIe 5.0 x16 dual-width, full-height, full-length slots and 5x PCIe 5.0 x16 single-width, full-height, full-length slots
Power Supply Supports 2000W/2200W/2600W CRPS N+1 redundant power supply (configured based on actual power)
Fan 12*6056 hot-swappable N+1 redundant fans
Management 1 RJ45 management port, IPMI 2.0
Security Supports TPM 2.0 module, chassis intrusion alarm, BMC/BIOS redundancy
Operating System Microsoft Windows Server, RedHatEnterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, VmwareEXSi
Server Size 850 x 444 x 176.5 mm (D * W * H)
Working Temperature Operating temperature: 5ºC - 35ºC (without direct sunlight); Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
