Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > Intelligent Computing > Intel AI Server

Intel AI Server

Unified Training and Inference

Suitable for cloud computing, image processing, training and inference, big data analysis, and more. Supports 2 3rd Gen Intel® Xeon® Scalable processors, 16 DDR4 ECC 2666/2933/3200MHz memory slots, and a maximum of 10 PCIe cards, delivering robust computational performance and flexible configurations to meet various industry needs

Applicable Solutions

Cloud computing, image processing, training and inference, big data analysis

Add to Compare

Product Overview Product Specifications Relevant Information

Comprehensive Performance Enhancement

Supports 1 or 2 3rd Gen Intel Xeon Scalable processors with a maximum power consumption of 205W. Accommodates up to 16 DDR4 ECC RDIMM/LRDIMM memory modules, with a maximum memory capacity of 2TB.

Exceptional Integrated Computational Power

With 2 Intel Xeon Scalable processors and 4 GPU cards, it delivers efficient image processing capabilities. The direct CPU-to-GPU connection significantly reduces communication latency and enhances graphics processing.

Outstanding Storage and Expansion Capability

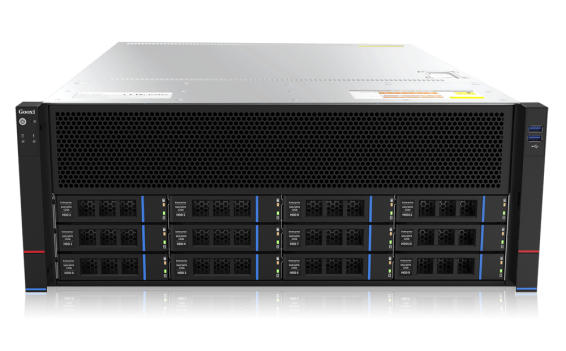

Supports up to 12 hot-swappable 3.5"/2.5" SATA/SAS3.0 hard drives, providing extensive data storage capacity. Features up to 10 PCIe expansion slots to meet your expansion needs.

Superior Networking and Management Performance

omes with onboard Ethernet controllers for reliable and fast network connections. Offers iKVM (KVM over Ethernet) remote management, coupled with a dedicated Gigabit management port, enabling remote management through a keyboard, display, and mouse. Provides real-time monitoring and remote operations, including power on/off, ensuring timely system maintenance by system administrators.

System Model	AS4104G-D12R-G3
Processor	Supports 1 or 2 3rd Gen Intel® Xeon® Scalable processors, with a maximum TDP of 205W
Chipset	Intel® C621A series server-specific chipset
GPU Card	Supports 4 RTX4090 and RTX3090 double-width, full-length and full-height cards
Memory	16 DDR4 memory slots, supporting DDR4 2666/2933/3200MHz LRDIMM/RDIMM memory
Storage Controller	1 M.2 (PCIe 3.0 x4) interface, 3 MiniSAS HD interfaces, and 2 SATA DOM interfaces
Storage	The front supports 12 hot-swappable 3.5/2.5-inch SAS/SATA hard drives
Network	Onboard 2 Gigabit RJ45 network ports

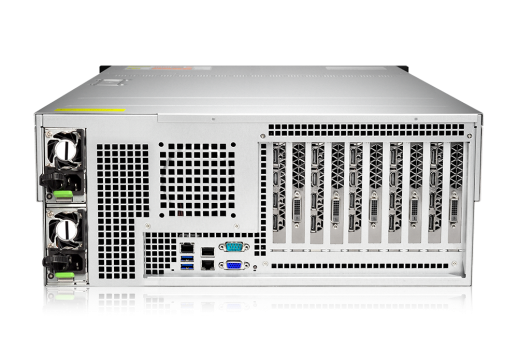

I/O Ports	Front: 2 USB3.0 Rear: 1 VGA, 1 COM port, 2 USB3.0, 1 management network port, 2 RJ45 network ports
PCIe Expansion	10 PCIe slots, supports 4 double-width, full-length, full-height 4090 graphics cards: supports 6 PCIe 3.0x8 (in PCIe x16 slot), 1 PCIe 3.0x16 and 3 PCIe 4.0x16; optional 4 PCIe 3.0x8 (in PCIe x16 slot), 2 PCIe 3.0x16 and 3 PCIe4.0x16;
GPU Quantity	Supports 4 double-width, full-length, full-height 4090 GPUs
Power Supply	2600W hot-swappable redundant power supply
Fan	Standard 8 hot-swappable N+1 redundant 8038 fans, optional 2 rear 8038 temperature-controlled fans
Management	1 dedicated RJ45 management network port
Security	Supports TPM module
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	695433176.5mm(depthwidthheight)
Working Temperature	Working temperature: 5ºC - 35ºC (without direct light); Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
