Intel AI Server

Exceptional GPU Density Support

Exceptional GPU Density Support

GPU servers designed for training and inference applications, utilizing the third-generation Intel Xeon Scalable processor platform, supporting up to 10 GPUs, and offering comprehensive performance support for high-density GPU computing. This product is compatible with NVIDIA A800 and RTX 4090 series GPUs, boasting advantages such as high scalability, stability, and ease of management.

Applicable solution

Cloud Computing / Digital Twin / Training and Inference / Big Data Analysis / Scientific Computing
Product Overview Product Specifications Relevant Information

Ultra high computing power

Support Intel® Xeon® Scalable Series processors (Ice Lake), support 2 high-power GPUs, and 1 M.2 interfaces on the motherboard, enabling ultra-high computing power; at the same time, the core, frequency, cache, and interconnect channel have been comprehensively enhanced.It also adopts DDR4 memory technology and supports 2TB memory expansion capability, which can be expanded on demand to meet application requirements of ultra-high computing power such as digital currency, cloud computing, big data, and virtual computing.

Good heat dissipation

Unique design of the front GPU bin allows the GPU to absorb more cool air, and has a separate GPU cooling air duct, ensuring the stable operation of server.

Exceptional GPU density support

The 4U system can support up to 10 double-width full-height GPU cards with switch interconnectivity. It is compatible with NVIDIA GeForce RTX 30 and 40 series as well as NVIDIA Tesla A800. It offers various power supply options without the need for component modifications, delivering an unparalleled architecture for maximizing computational performance.

AI intelligent remote management

IPMI remote management enables real-time monitoring of the system and real-time operations including switching on and off, ensuring that system managers to maintain the system in a timely manner; realize a true redundant architecture, including fans, power supplies, and storage.
System Model AS4110G-D10R-G3
Processor 1 or 2 Intel® Xeon® Series Gen3 Scalable processors
Chipset Intel® C621 A series dedicated processor chipset
GPU Card Supports 8 A800, RTX4090, or 10 RTX3090 GPUs with full-height, full-length, double-width PCIe interfaces simultaneously. It can accommodate a maximum of 10 standard PCIe slots in the rear.
Memory 16 DDR4 slots, supports DDR4 2666/2933/3200MHz LRDIMM/ RDIMM memory
Storage Controller Internal PCH supports RAID 0\1\10&5 (for Windows only)
Storage Front: 10x 2.5" SAS/SATA hot-swap hard drives Rear 2x 2.5" SAS/SATA hard drives
Rear optional added 2x 2.5" SAS/SATA or U.2 hard drives
Internal storage: 1 M.2 (PCIe3.0 x4) interface, 3 MiniSAS HD interfaces, 2 SATA DOM interfaces
Network Onboard 2 Gigabit RJ45 network ports
I/O Ports Front: 2 USB3.0;

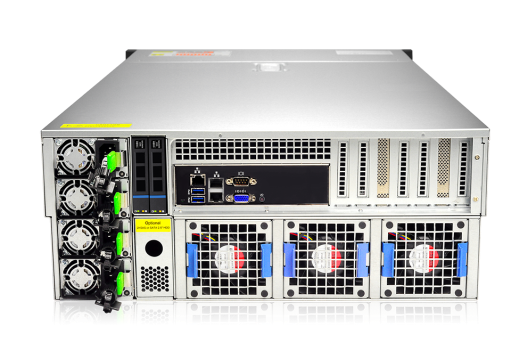

Rear: Integrated 2 Gigabit network ports, 1 independent IPMI management network port, 2 USB3.0 ports, 1 VGA port
PCIe Expansion Front PCIe4.0 x16 slots;
Rear 7 half-height PCIe x16 slots {support 4 PCIe 3.0x8 (in PCIe 3.0 x16 slot) and 3 PCIe 4.0x16;
Optional 2 PCIe 3.0x8 (in PCIe 3.0 x16 slot), 1 PCIe 3.0x16, and 3 PCIe 4.0x16}
GPU Quantity 10 full-length full-height dual-width GPU cards
Power Supply 1200W, 1300W, 1600W, 2000W, 2200W hot-swap 3+1 redundant power
Fan 11x 8038 hot-swap fans
Management IPMI2.0
Security TPM; chassis upper cover lock
Operating System Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size 790 x 433 x 176.5mm (D x W x H)
Working Temperature Operating temperature: 5ºC - 35ºC (indoor)
Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
