Intel AI Server

GPU computing

Newly launched 4U dual-socket AI acceleration computing server. It utilizes the Intel C621A high-performance chipset and supports the third-generation Intel® Xeon® Scalable processors. This model features 16 DDR4 3200MHz DIMM slots with a maximum memory capacity of up to 2TB. It supports 12*3.5-inch SAS/SATA hard drives in the rear. Additionally, it comes with 5 full-height, full-length double-width GPU slots. It has onboard integrated dual 1 Gigabit Ethernet interfaces to meet the networking needs of various applications. The server includes onboard integrated BMC (Baseboard Management Controller) and supports IPMI 2.0 remote management. It also features 1+1 CRPS (Common Redundant Power Supply) for redundancy.

Applicable solution

Artificial Intelligence/Deep Learning/Smart Education/Smart City/Healthcare/Big Data/HPC/Virtual Reality

Add to Compare

Product Overview Product Specifications Relevant Information

Supports 1/2 third-generation Intel® Xeon® Scalable series processors, with a maximum TDP (Thermal Design Power) support of 205W.
Provides 10 high-speed PCIe expansion slots, offering ample expansion capabilities.
Supports 5 full-height, double-width high-performance GPU cards to meet high computing power requirements.
Offers 16 DDR4 memory slots with memory frequencies supported at 2666/2933/3200MHz.

High Performance

Maximum support for 2 third-generation Intel® Xeon® Scalable series processors, providing powerful computing capabilities;Support for Intel Turbo Boost Technology 2.0, optimized for deep learning capabilities, and support for Intel Advanced Vector Extensions (Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512).

High Reliability

Equipped with advanced memory fault tolerance features;Optional SAS RAID card available, supporting RAID 0/1/5/6/50/60, with Cache supercapacitor protection, offering features such as RAID state migration and RAID configuration memory.

High Scalability

Includes 16 memory DIMM slots, supporting up to 2TB of 3DS ECC LRDIMM/RDIMM;Supports 12 2.5/3.5-inch SAS/SATA hard drives or SSDs;Maximum support for 4 full-length, full-height double-width professional graphics cards and compute acceleration cards.

High Manageability

Supports intelligent dynamic fan speed adjustment, with fan speed dynamically adjusted based on load, effectively reducing system noise and power consumption;Integrated IPMI functionality allows for remote operation and maintenance of servers, along with fault indication features, effectively reducing operational costs.

System Model	AS4105G-D12R-G3
Processor	Support 1 or 2 Gen3 Intel® Xeon® Scalable ICE Lake processors, maximum CPU TDP 205W
Chipset	Intel® C621 A series dedicated processor chipset
GPU Card	Supports 5 RTX3090, 4A800 or 4A16 double-width, full-height and full-length cards
Memory	16 DDR4 memory slots, support DDR4 2666/2933/3200MHz LRDIMM/RDIMM memory
Storage Controller	Internal PCH supports RAID 0\1\10&5 (for Windows only)

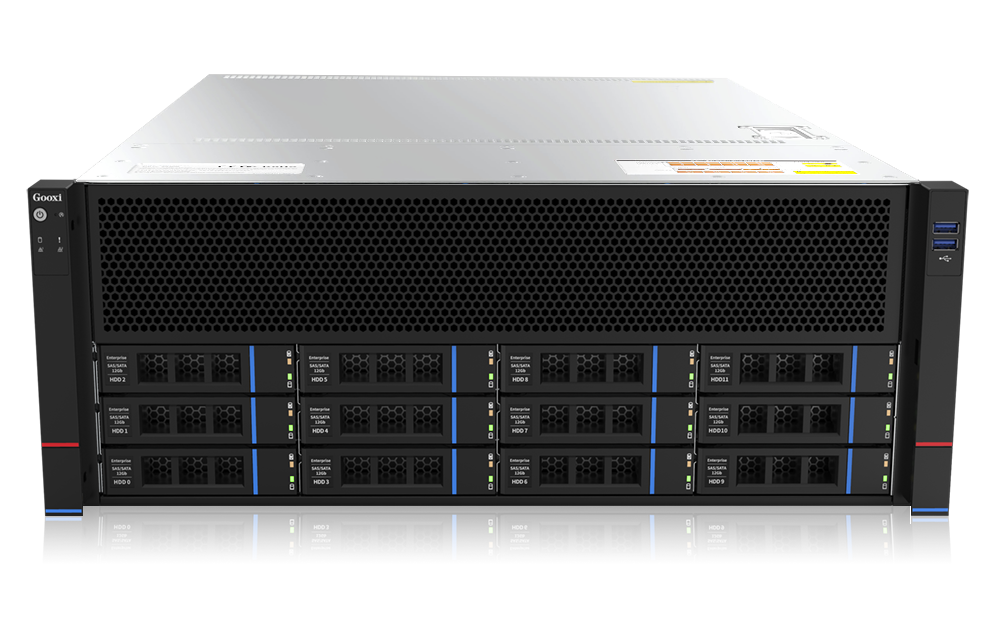

Storage	Front port: 12x 3.5"/2.5" SAS/SATA hot swap hard drives Optional rear 2x 2.5" SAS/SATA or U.2 hard drive bays Internal storage: 1 PCIe 3.0 x4 M.2 interfaces, 3 MiniSAS HD interfaces，2 SATA DOM ports,1 COM port
Network	Onboard 2 Gigabit RJ45 network ports

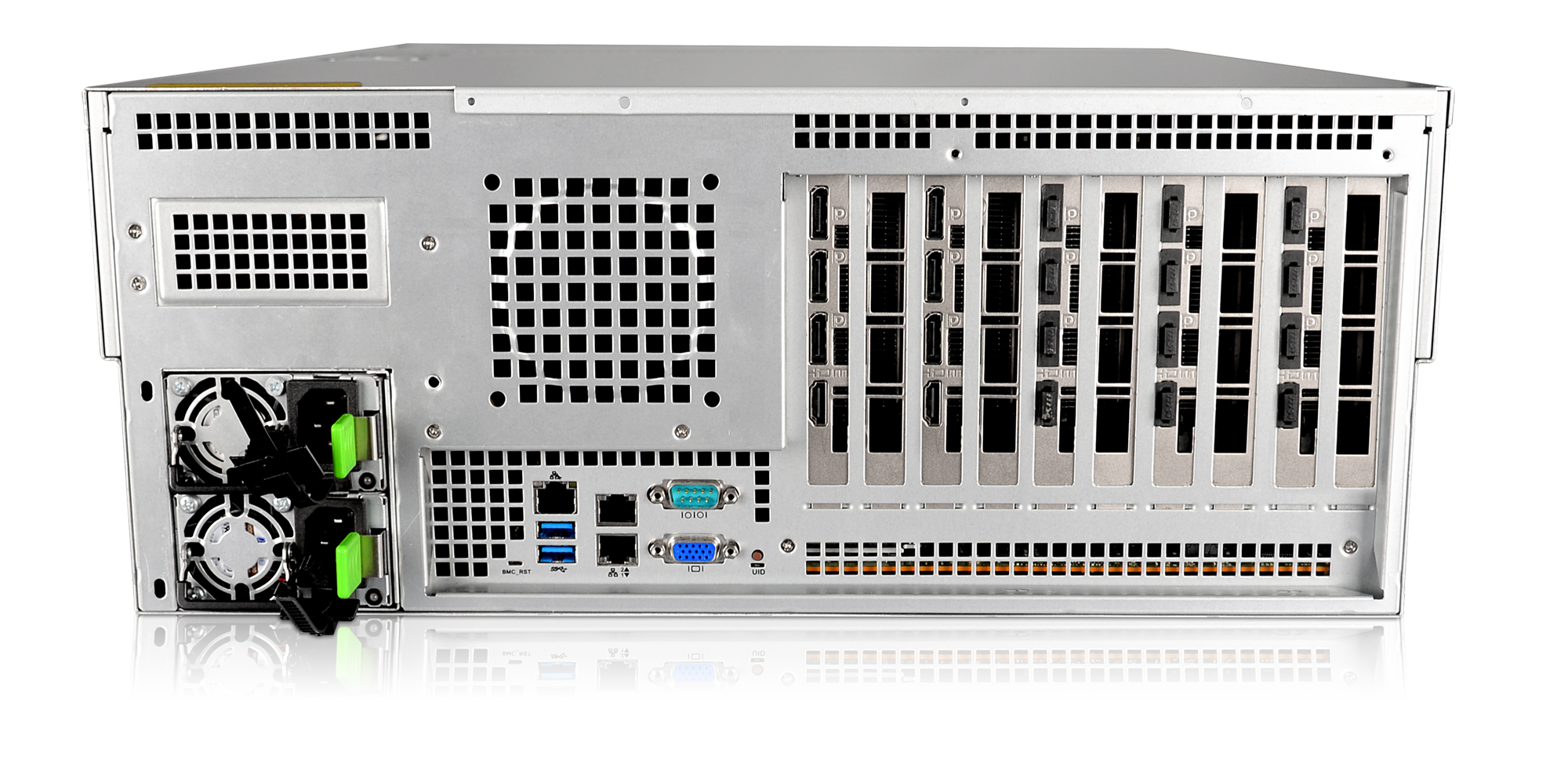

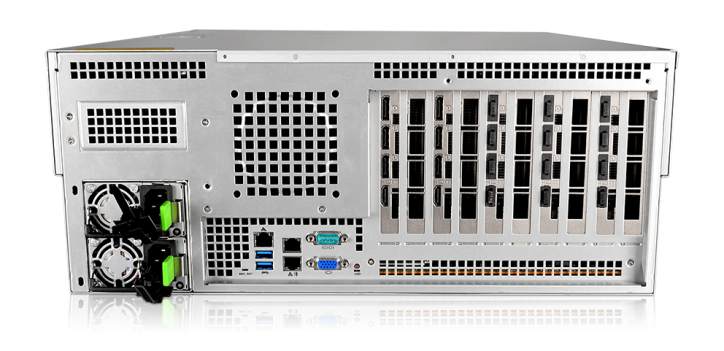

I/O Ports	Front: 2 USB3.0 Rear: integrated 2 Gigabit network ports, 1 independent RJ45 management network port, 2 USB3.0 ports, 1 VGA port, 1 COM port
PCIe Expansion	10 full-height PCIe x16 slots {support 6 PCIe 3.0x8 (in PCIe 3.0 x16 slot), 1 PCIe 3.0x16 and 3 PCIe 4.0x16,}；Optional 4 PCIe 3.0x8 (in PCIe x16 slot), 2 PCle 3.0x16 and 3 PCle 4.0x16
GPU Quantity	5 full-length full-height double-width GPUs
Power Supply	1600W, 2000W, 2200W hot-swap 1+1 redundant power
Fan	Internal 8x 8038 hot-swap N+1 redundant fans
Management	IPMI2.0
Security	TPM/TCM (optional)
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	695 x 433 x 176.5mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
