Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > Edge Computing > Edge Computing Server

Edge Computing Server

Superior performance and flexible scalability

2 AMD EPYC 7003 series, compatible with AMD EPYC 7002 and 7001 series / 16 DDR4 memory slots / 6 hot-swap SAS/SATA/NVMe (HDD/SSD/U.2)

Applicable solution

Edge Computing

Add to Compare

Product Overview Product Specifications Relevant Information

Superior computing performance & flexible expansion
Comply with OTII standard. Lightweight & portable, suitable for harsh working environment
Can be mixed with telecommunication equipment and deployed on communication center racks
Supports two full-size GPU cards, can be used as an inference server for AI application

Compact & Smart

450 mm depth only, tool-less rails are as options. Suitable for a variety of edge computing environment.

Powerful Expansibility

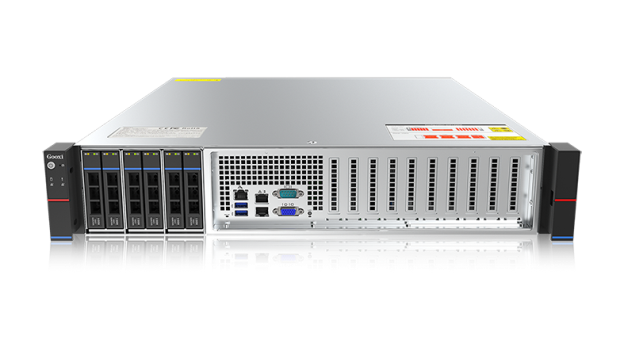

2U dual-socket server can support up to six 2.5" hot-swap hard drives, two full-height, full-length, and double-width GPUs, and two half-height, half-length, half-width PCIe card.

Intelligent Power Supply & Temperature Control

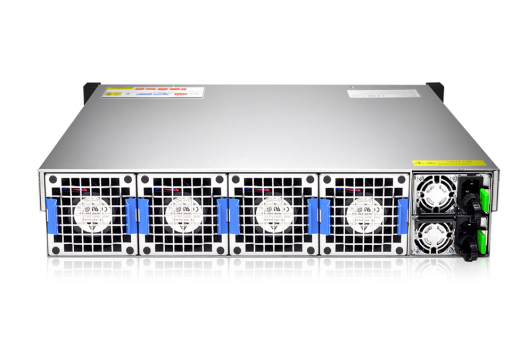

Platinum-level 550W 1 + 1 Redundant power supply, supporting hot-swap replacement to ensure system's stability.3 x 8038 high-speed fans. Intelligent temperature control fan module is used to support hot-swap replacement with excellent anti-vibration design.

Application

For 5G edge server market, the depth of 450mm meets the OTII Standard. It can support two full-size GPU cards, which is suitable for inference servers in edge computing.

System Model	MSR201-D06R
Processor	2 AMD EPYC 7003 series, compatible with AMD EPYC 7002 and 7001 series
Chipset	/
Memory	16 DDR4 memory slots, supporting 2400/2666/2933 MHz DDR4 memory
Storage Controller	1 M.2(PCIe x4) interface 2 MiniSAS HD interfaces
Storage	Front: 6x2.5" SATA/SAS hard disks
Network	Onboard 2x 1GbE
I/O Ports	1 VGA, 1 COM port, 2 USB3.0, 1 management network port, 2 RJ45 network ports
PCIe Expansion	Support 6 PCIe x8 and 4 PCIe x16 Form 1: 2 horizontally rotated full-height, double-width + 2 half-height PCIe slots Form 2: 10 PCIe half-height slots (6 PCIe x8, 4 PCIe x16) Form 3: 1 horizontally rotated full-height, double-width + 9 half-height PCIe slots Form 4: 1 horizontally rotated full-height, double-width + 3 half-height PCIe slots
Power Supply	Support 550W, 800W, 1300W, 1600W, 2200W redundant power (adapt according to the actual power)
Fan	Standard 4x 8038 fans
Management	1 RJ45 management network port, IPMI2.0
Security	Support TPM module
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	450 x 433 x 87.5mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
