Edge Computing Server

Superior performance and flexible scalability

Supports 1 or 2 Gen3 Intel® Xeon® Scalable processors / 16 DDR4 memory slots / 6 hot-swap SAS/SATA (HDD/SSD)

Applicable solution

cloud computing

Add to Compare

Product Overview Product Specifications Relevant Information

Superior computing performance & flexible expansion
Comply with OTII standard. Lightweight & portable, suitable for harsh working environment
Can be mixed with telecommunication equipment and deployed on communication center racks
Supports 10 half-height, half-length, and single-width GPU cards, can be used as an inference server for AI application

Compact & Smart

450 mm depth only, tool-less rails are as options. Suitable for a variety of edge computing environment.

Powerful Expansibility

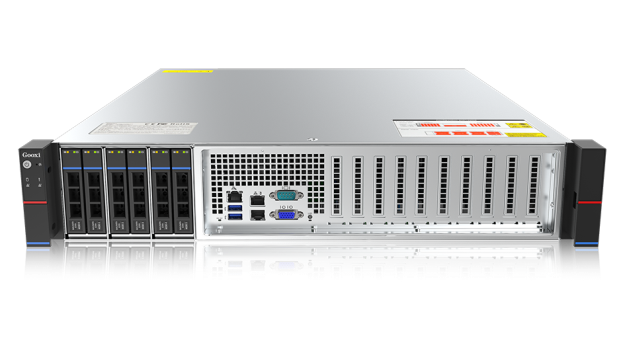

2U dual-socket server can support up to 6*2.5" hot-swap hard drives, 10 half-height, half-length, and single-width GPU cards.

Intelligent Power Supply & Temperature Control

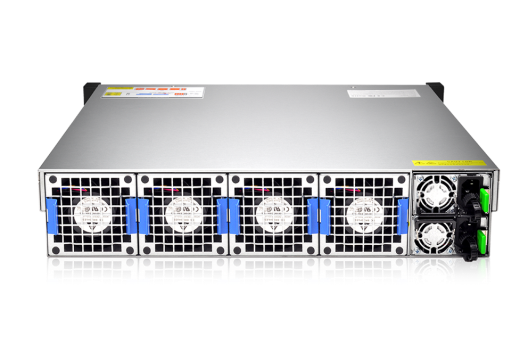

Platinum-level 550W 1 + 1 Redundant power supply, supporting hot-swap replacement to ensure system's stability.4 x 8038 high-speed fans. Intelligent temperature control fan module is used to support hot-swap replacement with excellent anti-vibration design.

Application

For 5G edge server market, the depth of 450mm meets the OTII Standard. It can support 10 half-height, half-length, and single-width GPU cards, which is suitable for inference servers in edge computing.

System Model	MSY201-D06R-G3
Processor	Supports 1 or 2 Gen3 Intel® Xeon® Scalable processors
Chipset	Intel® C621 A series dedicated processor chipset
Memory	16 DDR4 memory slots, support DDR4 2400/2666/2933/3200MHz LRDIMM/RDIMM memory
Storage Controller	Internal storage controller: PCH supports RAID 0\1\10&5 (for Windows only)
Storage	6 hot-swap SAS/SATA (HDD/SSD) Internal storage: 2 PCIe 3.0 x 2 M.2 interfaces, 3x 7pin SATA interfaces, 3 MiniSAS HD interfaces
Network	Onboard 2 Gigabit RJ45 network ports
I/O Ports	1 independent IPMI management network port, 2 USB3.0 ports, 1 VGA port
PCIe Expansion	10 half-height PCle×16 expansion slots
Power Supply	550W, 800W, 1200W, 1300W, 1600W hot-swap 1+1 redundant power supply
Fan	Standard 4x 8038 N+1 hot-swap fans
Management	IPMI2.0
Security	TPM
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	450 x 433 x 87.5mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
