Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > Edge Computing > Edge Computing Server

Edge Computing Server

Superior performance and flexible scalability

Supports 1 or 2 Gen1/2 Intel® Xeon® Scalable processors / 16 DDR4 memory slots / 4 hot-swap SAS/SATA (HDD/SSD)

Applicable solution

cloud computing

Add to Compare

Product Overview Product Specifications Relevant Information

Superior computing performance & flexible expansion
Comply with OTII standard. Lightweight & portable, suitable for harsh working environment
Can be mixed with telecommunication equipment and deployed on communication center racks
Supports two full-size GPU cards, can be used as an inference server for AI application

Compact & Smart

450 mm depth only, tool-less rails are as options. Suitable for a variety of edge computing environment.

Powerful Expansibility

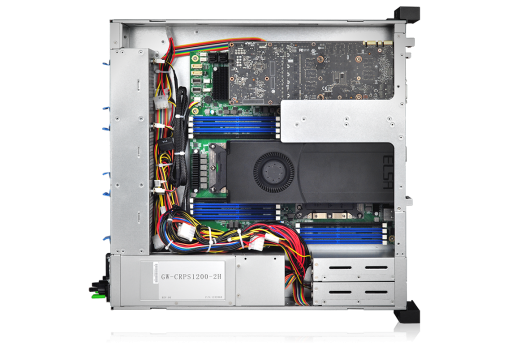

2U dual-socket server can support up to four 2.5" hot-swap hard drives, two full-height, full-length, and double-width GPUs, and one half-height, half-length, half-width PCIe card.

Intelligent Power Supply & Temperature Control

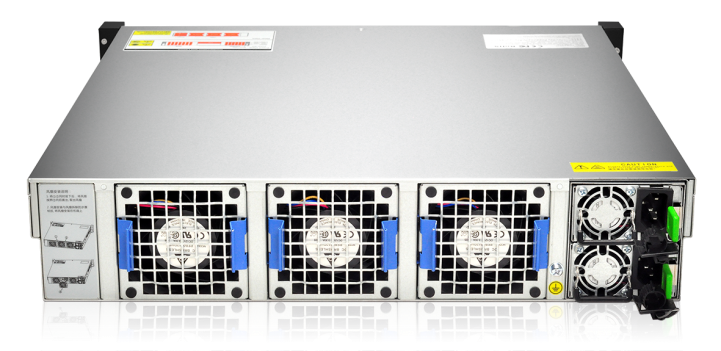

Platinum-level 550W 1 + 1 Redundant power supply, supporting hot-swap replacement to ensure system's stability.3 x 8038 high-speed fans. Intelligent temperature control fan module is used to support hot-swap replacement with excellent anti-vibration design.

Application

For 5G edge server market, the depth of 450mm meets the OTII Standard. It can support two full-size GPU cards, which is suitable for inference servers in edge computing.

System Model	MSY201-D04R
Processor	Supports 1 or 2 Gen1/2 Intel® Xeon® Scalable processors
Chipset	Intel® C621 series dedicated processor chipset
Memory	16 DDR4 memory slots, support DDR4 2133/2400/2666/2933MHz LRDIMM/RDIMM memory
Storage Controller	Internal storage controller: PCH supports RAID 0\1\10&5 (for Windows only)
Storage	4 hot-swap SAS/SATA (HDD/SSD) Internal storage: 1 M.2(PCIe 3.0 x 4) interfaces, 3 MiniSAS HD interfaces, 2 SATA DOM interfaces, 2 Slimline 4i interfaces
Network	Onboard 2 Gigabit RJ45 network ports
I/O Ports	1 VGA interface, 1 DB-9 COM interface, 2 USB3.0 interfaces, 2 USB2.0 interfaces, 1 RJ45 management network port and 2 RJ45 network ports
PCIe Expansion	Support 2 full-height, full-length, double-width PCIe slots and 1 half-height half-length, single-width PCIe slot
Power Supply	550W, 800W, 1200W, 1300W, 1600W hot-swap 1+1 redundant power supply
Fan	Standard 3x 8038 N+1 hot-swap fans
Management	IPMI2.0
Security	TPM
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	450 x 433 x 87.5mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
