Flagship Dual-Socket Server, Strong Scalability with Massive Storage

Current location：

Home > Products > Product List > Chassis > 4th GEN Server Chassis > 1U > Standard Chassis

Standard Chassis

Safe and stable

Storage-Compute Convergence

EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX / Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drive, 10* 2.5” hot-swap hard drive bays

Add to Compare

Product Overview Product Specifications Relevant Information

1U Rackmount server chassis series with 640mm depth
Serverboard support up to standard EEB 12"x13", backward supports to CEB and below
Supports 1x full-height full-length PCIe cards

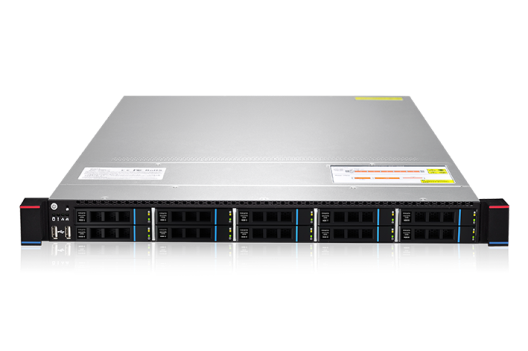

Front 10x2.5" hot-swap HDDs

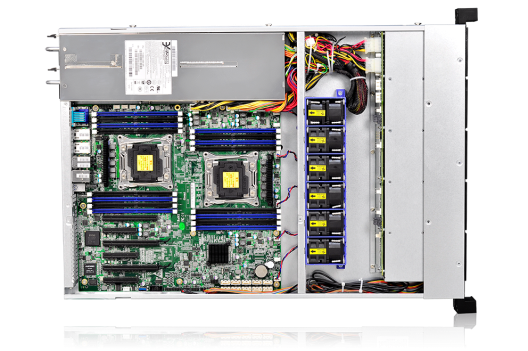

High-performance 4x 4028 cooling fans with anti-vibration mechanism and optional up to 6x 4056 middle fans
Smart system fan controlled by intelligent temperature management

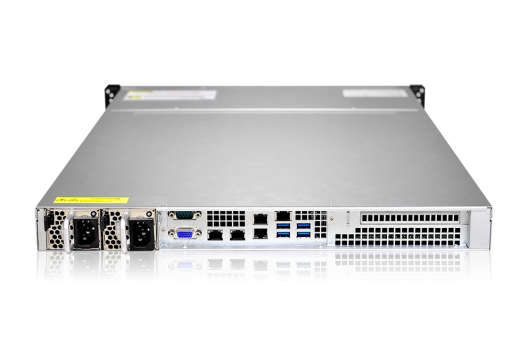

Supports 1U Single PSU or 1+1 Redundant PSU
12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs

Chassis Form	Rackmount
Chassis Height	1U
Compatible Motherboard	EEB(1213)/CEB(1210.5)/ATX(12*9.5)/Micro ATX
Power Type	Single power or 1+1 redundant power supply
Backplane	12Gb/s passive backplane
Hard Drive Bay	Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drive, 10* 2.5” hot-swap hard drive bays
HDD Shockproof	The hard drive rack adopts EMI spring design, unique shockproof fan design, reduces the resonance between the fan and the hard disk, and does not affect the hard drive I/O speed
System Fan	Supports intelligent-temperature control, 4x 4028 hot-swap fans, up to 6x 4056 fans
Expansion Slot	1 full-height PCIe expansion card slot
Security	TPM module
Front Panel Control	2 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 2 network indicators
Slide Rail	Optional
Air Duct	Optional
Front Mask	Optional
Product Material	Imported SGCC (galvanized steel sheet), ABS panel and perforated mesh
Chassis Size	640mm433mm43.5mm (D* W* H)
Chassis Gross Weight	7.2kg（Net weight）/ 9.5kg（Gross weight）
Package Size	902mm591mm183mm(D* W* H）

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
