Edge Computing Chassis

Safe and stable

Supports all standard motherboards below 12 "x13" / Supports 7* half height PCIe expansion slots / Single and 1+1 Redundant / Supports intelligent-temperature control, 3x 8038 hot-swap fans

Add to Compare

Product Overview Product Specifications Relevant Information

Latest OTII standard and can use in 5G Edge computer room
2U height, 450mm depth

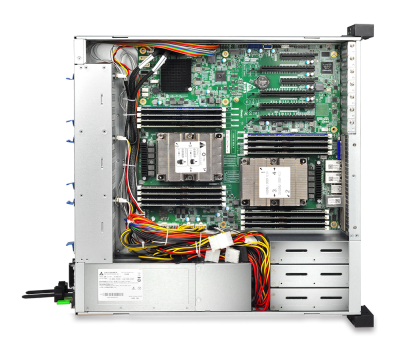

Chassis support all standard 12”x13” MB and below

Space-saving

Easy to deploy, suitable for computer room and can also be deployed in all non-standard computer room.Beautiful, noise-reduction and space-saving.

OTII standard

Cater to the future. Suitable for edge computer room after the full deployment of 5G.

Flexible storage

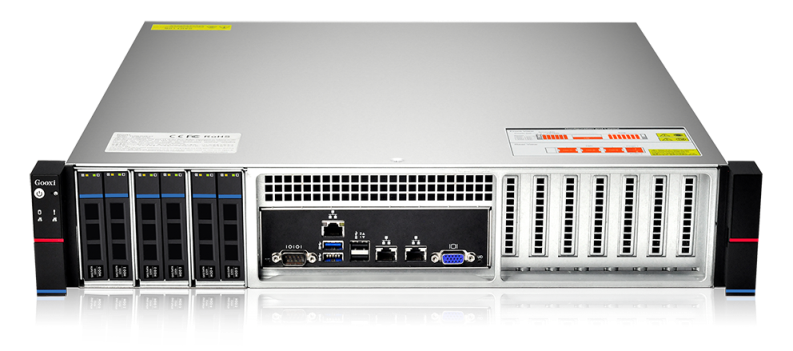

Chassis supports up to 6* 2.5 "hot plug hard disks. 3 small backplanes can be equipped with SATA/SAS /NVMe storage protocol. The backplane can flexibly match to make the storage mode more diversified.

Great heat dissipation

With 10-year experience in server rack chassis design & producing, we have iterated 5Gen products, which are stable & reliable in 450mm space. Up to 7* Low Profile PCIe cards & 2* 205W CPUs.

Chassis Form	Rackmount
Chassis Height	2U
Compatible Motherboard	EEB(1213)/CEB(1210.5)/ATX(12*9.5)/Micro ATX
Power Type	Supports 1+1 redundant power supply
Backplane	Supports optional
Hard Drive Bay	Front 62.5″ SAS/SATA, optional rear supports 22.5″ SAS/SATA or U.2 hard drives
HDD Shockproof	The hard drive rack adopts EMI spring design, unique shockproof fan design, reduces the resonance between the fan and the hard disk, and does not affect the hard drive I/O speed
System Fan	Front 3x 8038 hot-swap fans
Expansion Slot	7x half-height PCIe expansion card slots
Front Panel Control	1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 2 network indicators
Slide Rail	Support
Air Duct	Optional
Front Mask	/
Product Material	Imported SGCC (galvanized steel sheet)
Chassis Size	45043387.5mm(D* W* H)
Chassis Gross Weight	7kg（Net weight）/ 11kg（Gross weight）
Package Size	680mm600mm228mm(D* W* H)

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
