Dual Control Storage Server

massive storage

massive storage

Supports two high-performance easy-swappable nodes, single node supports 1x Intel® Xeon® E5-2600 V3/V4 processors/8 DDR4 2400/2133/1866 RDIMM/LRDIMM/24 hot-swap SAS(HDD/SSD)

Applicable solution

Product Overview Product Specifications Relevant Information

Data protection

1 + 1BBU redundant battery backup system protects data over 10minutes after AC power-failure.

Large Expansibility

Intel®Xeon® E5-2600 V3/V4 processor. Per controller supports up to 8* DDR4 memories, whole machine up to 1024GB memory.End-to-end 12GB solution maximizes I/O performance.


PSU module adopts 1+1 redundant, intelligent fan control based on PID closed-loop control, power capping NM technology, and DC-DC switch PSU with 94%conversion efficiency.

Rich I/O

Per controller onboard 4 iSCSI host ports, 1 GbE management LAN port and 1 console port; 2* 10Gb iSCSI host ports or 4* 16Gb FC/8GB FC ports can expand.The back-end disk expansion port supports 2* 12Gb SFF8644 Mini SAS HD for each controller.

System Model DST402-S24RB
Processor A single node supports one Intel® Xeon® E5-2600 V3/V4 series processor Socket H3 (LGA2011) up to 145W CPU

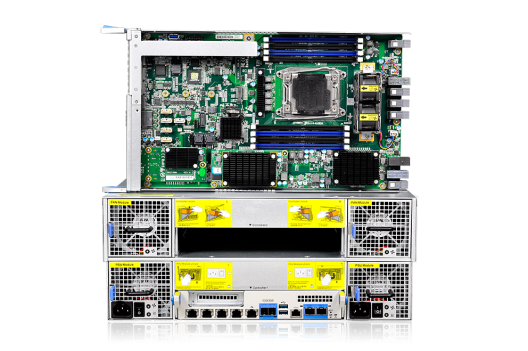

Supports two controller nodes with high performance and easy-swap. Single or dual control mode
Chipset Intel ®C621 series server dedicated chipset
Memory A single node supports eight DDR4 nodes 2400/2133/1866 RDIMM/LRDIMM
Capacity of a single memory: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB
Storage Controller PCH supports RAID 0\1\10&5 (for Windows only)
5 SATA 7Pins and 2 Mini SAS

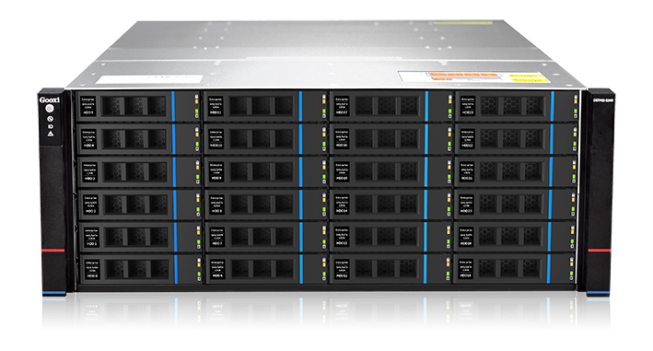

Storage Front: 24 3.5 "/2.5" SAS hard disks
Internal storage: 2 PCIe 3.0 x2/SATA M.2 ports (2242, 2280, or 22110)
Network Four iSCSI (Intel®I350 RJ45) host ports

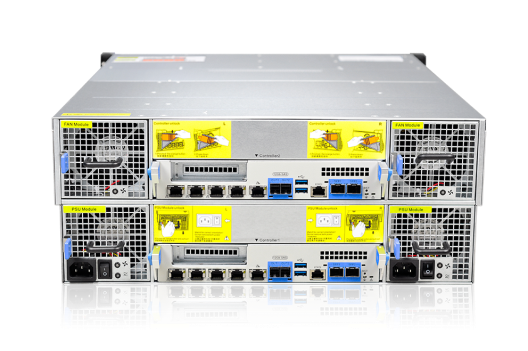

I/O Ports One gigabit Ethernet management network port (used with IPMI), one Console port (RJ45, compatible with CISCO standard), two 4x12Gb SFF8644 Mini SAS HD, and optional expansion two 10Gb iSCSI or four 16Gb FC/8Gb FC
PCIe Expansion Each controller supports one half-height PCIe3.0 x8 slot and 1 PCle3.0 x8 Mezzanine interface
Power Supply 2 power failure protection BBU batteries and 800W 1+1 redundant power supply
Fan 8x 8038 & 4x 4028 temperature control fans
Management IPMI2.0
Security Supports TPM module
Operating System Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size 600mm x 448mm x 176mm(D * W * H)
Working Temperature Operating temperature: 5º C-35 ºC(indoor)
Storage temperature: -40º C-70 ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
