Multi-Node Server

High density computing

High density computing

Single node supports 2 Intel E5 2600 V3/V4 series processors / Single node supports DDR4-1600/1866/2133/2400 ECC-RDIMM/LRDIMM / 24 hot-swap SATA (HDD/SSD)

Applicable solution

Data Center
Product Overview Product Specifications Relevant Information
  • 2U4 Nodes server system.
  • Intel® E5-2600 V3/V4 series processor.
  • For data center, web server, virtualization, e-commerce.



Massive Storage

24*2.5” hard disks. Each node supports 16* DDR4 DIMMs, RDIMM up to 512GB; LRDIMM up to 1TB. Supports RAID & HBA cards.

Modular Design

Full modular controller, hard disk & PSU. Modules support hot-swap to maximize system’s reliability, overall heat dissipation & power-saving.

Perform Well

2U2/2U4 high-density server: 4 (SY204 series) computing nodes in a standard 2U rack. Per node uses 2* Xeon® E5-2600 V3/V4.Suitable for visualized desktops, large graphics rendering, cloud platforms,etc. More powerful than 2U rack server

Rich I/O

Remote IPMI2.0, easy-to-operate upgrading software, remote BMC & BIOS upgrading;Powerful system monitoring abilities, perfect log info, easy query management.2* 1G RJ45, 2*10G LAN ports Can expand to 4* 1G & 4*10 G ports via PCIe.


System Model SY204-D24RF

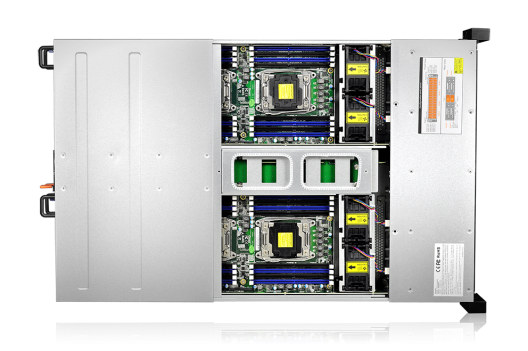

System Nodes The system supports 4 easy-swap high-performance dual-socket server nodes
Processor Single node supports 2 Intel E5 2600 V3/V4 series processors
Chipset Intel® C612 series server-specific chipset
Memory Single node supports DDR4-1600/1866/2133/2400 ECC-RDIMM/LRDIMM;
Single memory capacity support: RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB
Storage Controller Single node Internal storage controller: PCH supports RAID 0\1\10&5 (for Windows only);
Storage Single node supports 6x 2.5" SATA hard drives

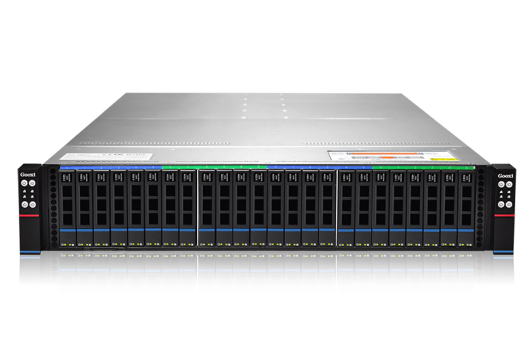

The whole system supports 24x 2.5" SATA hard drives
Single-node internal storage: 4x 7pin SATA interfaces
Network Onboard 2 Gigabit RJ45 network ports and 2x 10Gigabit SFP+ network ports

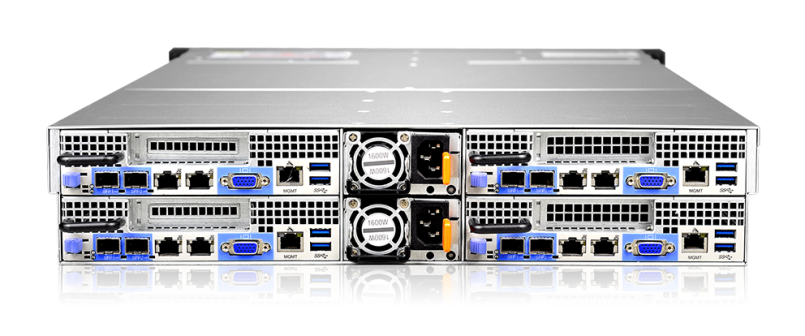

I/O Ports 1 VGA interface, 2 USB3.0 interfaces, 1 RJ45 management network port, 2 Gigabit RJ45 network ports and 2x 10G SFP+ network ports
PCIe Expansion Single node: Support 1 x PCIe3.0 x 8 half-height expansion card
Power Supply 800W, 1200W, 1300W, 1600W hot-swap 1+1 redundant power
Fan The system supports 4x 8038 hot-swap fans
Management IPMI2.0
Security TPM
Operating System Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size 760 x 433 x 87.6mm (D x W x H)
Working Temperature Operating temperature: 10ºC - 35ºC (indoor)
Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
