AMD-AI Server

Combining Exceptional Performance, Storage Expansion Capabilities, and Stability to Deliver Extraordinary Strength

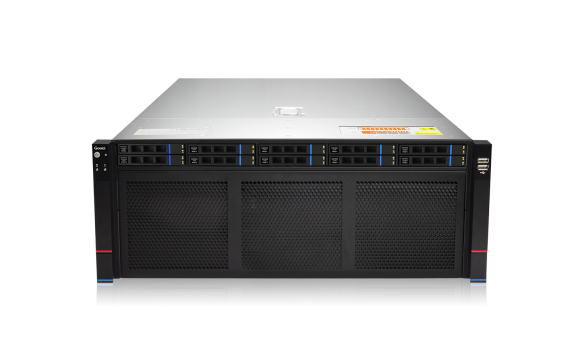

Gooxi's AMD dual-socket 4U 10-GPU server utilizes the Gooxi G2DERO-B (PCIe 4.0) motherboard. It supports 2 high-performance AMD EPYC 7003/7002/7001 series processors, features 16 DDR4 memory slots, and can accommodate 10 double-width, full-height, full-length GPU cards. It demonstrates exceptional capabilities in terms of computational performance, storage expansion, and stability, making it ideally suited for emerging fields such as artificial intelligence. It is suitable for various application scenarios, including big data analysis, 3D graphics applications, video decoding, deep learning, scientific computing, and more

Applicable solution

Big Data Analysis ∣ 3D Graphics Applications ∣ Video Decoding ∣ Deep Learning ∣ Scientific Computing

Add to Compare

Product Overview Product Specifications Relevant Information

Supports 2 high-performance AMD EPYC 7003/7002/7001 series processors
Features 16 DDR4 memory slots
Provides 10 PCIe 4.0 expansion slots, allowing for the installation of 10 double-width, full-height, full-length GPU cards
Offers extensive expansion capabilities, including support for 10 single-width, half-height, half-length PCIe expansion cards
Includes a total of 20 PCIe expansion slots, providing ample opportunities for expansion

Superior Computing Power

Supports 2 high-performance AMD EPYC 7003/7002/7001 series processors, with a native motherboard M.2 interface and DDR4 memory technology, meeting the needs of applications such as big data analysis, 3D graphics, video decoding, deep learning, scientific computing, and more

Effective Heat Control

Featuring a unique front GPU compartment design that allows GPUs to intake more cool air and an independent GPU cooling duct, creating a front-to-back ventilation channel to promptly remove a large amount of heat from the chassis, ensuring stable server operation

Exceptional GPU Density Support

The 4U system can support up to 10 double-width, full-height GPU cards, compatible with NVIDIA GeForce RTX40 series and NVIDIA, offering various power supply options without the need for additional modifications, providing an unparalleled architecture for achieving maximum computing performance

AI-Powered Remote Management

IPMI remote management enables real-time monitoring and operations, including power on/off, from a remote location, ensuring timely system maintenance. It incorporates true redundancy architecture, including fans, power supplies, and storage

System Model	ASR4110G-D04R-G2
Processor	Supports 2 AMD EPYC 7003 series (Milan) processors Compatible with AMD EPYC 7002 series (Rome) and AMD EPYC 7001 series (Naples)
Chipset	/
Memory	16 DDR4 memory slots, support 2400/2666/2933 DDR4 RECC memory
Storage Controller	1 M.2 (PCIe x4) interface, 2 MiniSAS HD interfaces
Storage	Front 4 hot-swappable 3.5/2.5-inch SAS/SATA hard drives, rear standard 2 2.5-inch SAS/SATA hard drives (optional U.2 module), optional rear additional 2 2.5-inch SAS/SATA or U.2 hard drive
Network	2 onboard 1GbE

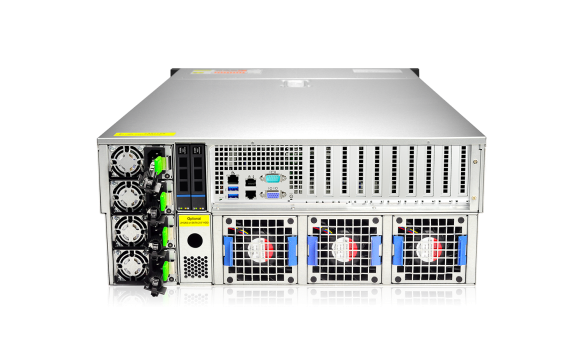

I/O Ports	Front: 2 USB2.0, 1 switch key, 1 reset key, 1 hard disk indicator light, 1 system fault light, 2 network indicator lights Rear: 1 VGA, 1 COM port, 2 USB3.0 ports, 1 RJ45 Gigabit management network port, 2 Gigabit RJ45 network ports
PCIe Expansion	Front: Support 10 double-width, full-length, full-height PCIe4.0 expansion slots Rear: Support 4 half-height PCIe4.0 x8 (in PCIe x16 slot), 2 half-height PCIe3.0 x8 (in PCIe x16 slot) and 4 half-height PCIe4.0 x16
GPU Quantity	10 double-width full-height full-length GPU cards
Power Supply	Support 1200W/1300W/1600W/2000W/2200W CRPS 3+1 redundant power supply (according to actual power adaptation)
Fan	Eight 8038 hot-swappable fans are standard in the center, and three 8038 hot-swap fans are standard in the rear
Management	1 dedicated RJ45 management network port IPMI2.0
Security	Support TPM module
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	790mm x 433mm x 176.5mm (DWH)
Working Temperature	Working temperature: 5ºC - 35ºC (without direct sunlight) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
