Intel-AI Server

Integration of High Performance, Scalability and Density

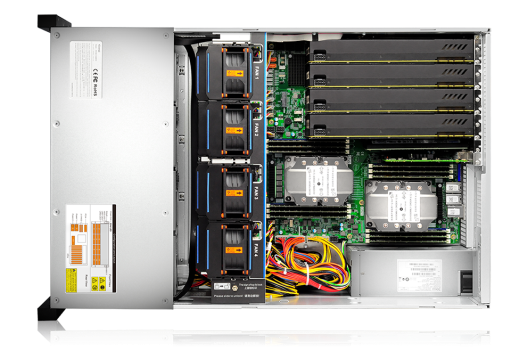

A 4-card AI server designed and developed for high performance requirements based on the Intel® Xeon® Scalable Processor Platform, supporting 4 Geforce, Tesla, or Quadro GPUs in 4U of space, which represents the convergence of performance, scalability, and density.

Applicable solution

Add to Compare

Product Overview Product Specifications Relevant Information

Supports one or two first-generation and second-generation Intel® Xeon® Scalable series processors
Supports 12 DDR4 memory slots with memory frequencies of 2133/2400/2666/2933MHz, with a maximum memory capacity of up to 1.5TB
Onboard are two PCIe 3.0 x2 M.2 slots (size 2280) to meet high-speed caching needs
Supports 10 high-speed PCIe 3.0 expansion slots, offering ample expansion capabilities

Comprehensive Performance Improvement

Supports 1 or 2 Intel Xeon Scalable processors with a maximum power consumption of 205W.Accommodates 12 DDR4 RECC RDIMM/LRDIMM memory slots, with a maximum memory capacity of up to 1.5TB.

Outstanding Storage and Expansion Capability

Supports up to 12 hot-swappable 3.5"/2.5" SATA/SAS3.0 drives, with an additional 2 hot-swappable 2.5" SATA/SAS/NVME drives at the rear, offering extensive data storage capacity.Provides support for up to 10 PCIe expansion slots to meet various expansion needs.

Superb Integrated Computing Power

Employs 2 Intel Xeon Scalable processors combined with 4 GPU cards for efficient image processing capabilities.CPU and GPU are directly connected, significantly reducing communication latency. The GPU serves as the primary processor while the CPU acts as a coprocessor, resulting in remarkable computational power.

Outstanding Network and Management Performance

Features onboard Ethernet controllers, ensuring reliable and fast network connectivity.Offers iKVM (KVM over Ethernet) remote management functionality along with a dedicated Gigabit management port. This enables remote management through a keyboard, monitor, and mouse, facilitating real-time monitoring and operations, including power on/off, to ensure timely system maintenance by system administrators.

System Model	SY4104G-D12R
Processor	1 or 2 1st/2nd-generation Intel® Xeon® Scalable processors, Maximum power consumption 205W
Chipset	Intel® C621 series dedicated processor chipset
GPU Card	Supports 4 RTX 3090, 3080, 3070 and other double-width, full-length and full-height cards
Memory	12 DDR4 memory slots, support DDR4 2133/2400/2666/2933MHz LRDIMM/RDIMM
Storage Controller	Internal PCH supports RAID 0\1\10&5 (for Windows only)

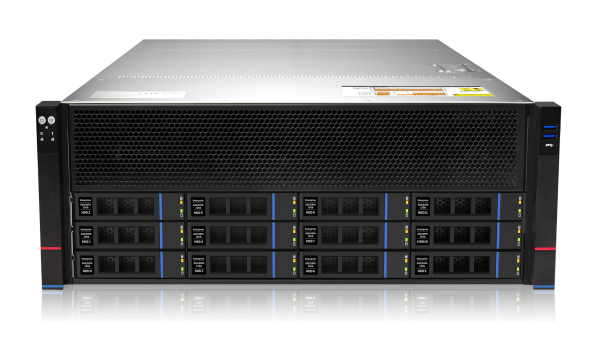

Storage	Front port: 12x 3.5"/2.5" SAS/SATA HDD/SSD Rear supports 2.5" SATA/SAS HDD/SSD or U.2 SSD Internal storage: 2 PCIe 3.0 X2 M.2 interfaces, 3 7pin SATA interfaces, (support SATA DOM), 3 8643 Minisas interfaces
Network	Onboard 2 Gigabit RJ45 network ports

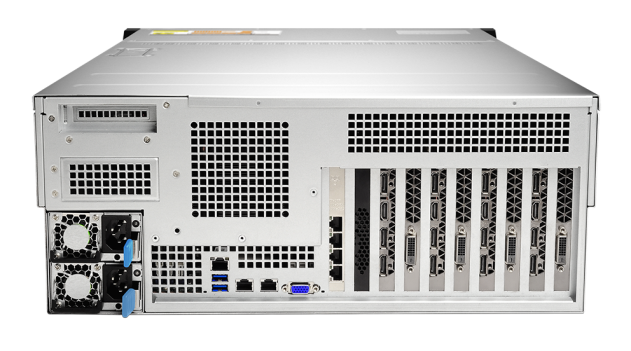

I/O Ports	Front port: 2 USB3.0 Rear: 1 VGA, 2 USB3.0, 1 management network port, 2 RJ45 network ports
PCIe Expansion	Up to 10 PCIe expansion slots Onboard: 1 8X slimline interface, 2 PCIe3.0X2 M.2 (2280)
GPU Quantity	4 full-length full-height dual-width GPU cards，3090 turbo single graphics card
Power Supply	1200W, 1300W, 1600W, 2000W, 2200W hot-swap 1+1 redundant power supply
Fan	Standard 8x 8038 hot-swap fans
Management	IPMI2.0
Security	TPM/TCM (optional)；Chassis open intrusion detection (optional); Locked upper cover of chassis
Operating System	Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
Server Size	695 x 433 x 176.5mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
