Dual Control Storage Expansion Cabinet

massive storage

Support up to 24*3.5”/2.5” SAS hard drives / support 2 hot-swappable controller nodes / support 24 hot-swappable SAS (HDD/SSD)

Applicable solution

cloud computing

Add to Compare

Product Overview Product Specifications Relevant Information

Active-Active Dual Host, Dual Controller Architecture

The DST402-S24RB is a 4U24-bay 2.5" drives dual-active JBOD product with two controller modules interconnected via X8 PCI-E 3.0 NT for cache mirroring. The entire system is based on a cable-less, modular design.

Versatile I/O Interfaces

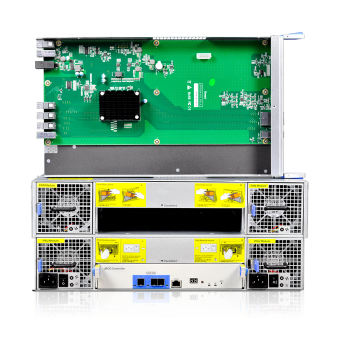

Each controller support 1* SFF8644 SAS-in and 2*SF8644 SAS-out, 1*RJ45 port for debuging and management.

Energy Saving for Green

The power system equips Platinum 1+1 Redundant power supply, intelligent fan speed-control is based on PID closed-loop, and DC-DC switching power supply with up to 94% power efficiency, which greatly reduces system power consumption.

System Model	DST402-S24RJ
Storage Controller	Support 2 hot-swap controller nodes
Storage	Support 24 hot-swap SAS (HDD/SSD)
I/O Ports	2x 12Gb/s Mini SAS HD interfaces
Power Supply	Adopt 800W 1+1 redundant power supply
Fan	Support 8x 8038 temperature-controlled fans
Server Size	600mm x 448mm x 176mm (D x W x H)
Working Temperature	Operating temperature: 5ºC - 35ºC (indoor) Storage temperature: -40ºC - 70ºC

Please note that the above specifications are subject to change without prior notice. (Gooxi reserves the right for the final interpretation)
